The evolutionary benefit of an fragrant clamp in plant household 3 glycoside exo-hydrolases

Facebook
Twitter
Pinterest
WhatsApp

Mutants altered in Trp286 and Trp434 residues

The productive binding of carbohydrates in HvExoI entails the participation of Trp286 and Trp434 residues that type an fragrant clamp on the +1-subsite, whereas the neighbouring subsite comprises the Asp285 and Glu491 catalysts1,2,3 (Fig. 1a). In HvExoI, after the hydrolytic cycle is accomplished, each subsites comprise entrapped Glc merchandise which might be displaced after a brand new substrate is connected22. The Glc molecule entrapped within the −1 subsite (Fig. 1b) is held on the backside of the pocket by at the least 10 residues (Fig. 1a, b). The residues equal to the HvExoI 286 and 434 positions overlap within the homologous GH3 exo-hydrolases14,15,32, type related fragrant clamps, and that of Bacteroides β-glucosidase (PDB 5JP0) harbours the Glc molecule after in crystallo perfusion (Fig. 1a). To resolve phylogenetic relationships of HvExoI throughout the GH3 household4 a phylogenetic tree of chosen entries was constructed revealing that the entries segregated in 4 clusters harbouring 5 enzyme actions: β-d-glucan glucohydrolases, β-d-glucosidases, β-N-acetylhexosaminidases, β-d-xylosidases, and α-l-arabinofuranosidases33,34 (Fig. 1c; Supplementary Desk 1). The inspection of the β-d-glucan glucohydrolase cluster revealed that Trp286 and Trp434 remained conserved in subclade 1, whereas within the subclades 2 and three enzymes, we recognized variations in each Trp residues – Trp286/Tyr286 and Gln434/Tyr434/Trp434 in subclade 2, and Gly434/His434/Lys434/Trp434 in subclade 3 (Fig. 1c), which can impression substrate binding and processivity in these enzymes.

To look at the exact mechanistic roles of the Trp286 and Trp434 residues within the binding of isomeric (1,2)-, (1,3)-, (1,4)- and (1,6)-linked β-d-glucosides in HvExoI, we methodically various these residues to Ala, His, Phe, and Tyr to generate single (and in some situations) double mutants, and investigated their substrate specificity, steady-state and inhibitions kinetics and substrate binding in atomic buildings (Figs. 2–4; Supplementary Figs. 2–4; Supplementary Tables 2–6).

Fig. 2: WT HvExoI in advanced with thio-saccharide analogues.
figure 2

a Thio-sophoroside (G2SG-OMe; pink); b thio-laminaribioside (4NP-G3SG; magenta); c thio-cellotrioside (G4SG4OGS; cyan); and d thio-gentiobioside (G6SG-OMe; inexperienced) moieties are certain throughout the −1 to +2 subsites. Panels a to d comprise derived distinction 2 m|Fo|-D|Fc| electron density maps (blue) of thio-analogues (additionally proven as insets rotated by round −90o by way of x-axes relative to predominant panels) contoured at 1.0 σ ranges. Glycerol (Gol) or polyethylene glycol (PEG) and water molecules are proven in cpk orange sticks and purple spheres, respectively. Distances at separations inside 3.3 Å are proven in dashed traces. Ligand designations above structural pictures point out thio-analogues that have been perfused in crystals.

Fig. 3: Thio-saccharide analogues are certain within the energetic web site of the HvExoI W434A mutant.
figure 3

a Thio-sophoroside (G2SG-OMe, pink); b thio-laminaribioside (4NP-G3SG, magenta); c thio-cellotrioside (G4SG4OGS; cyan); and d thio-gentiobioside (G6SG-OMe, inexperienced) moieties are certain throughout the −1 to +2 subsites. Panels ad comprise derived distinction 2 m|Fo|-D|Fc| electron density maps (blue) of thio-analogues (additionally proven as insets rotated by round −90o by way of x-axes relative to predominant panels) contoured at 1.0 σ ranges. Polyethylene glycol (PEG) and water molecules are proven in cpk orange sticks and purple spheres, respectively. Distances at separations inside 3.3 Å are proven in dashed traces. Ligand designations above structural pictures point out thio-analogues that have been perfused in crystals.

Fig. 4: Thio-saccharide analogues are certain within the energetic web site of the HvExoI W434H mutant.
figure 4

a Thio-sophoroside (G2SG-OMe, pink); b thio-laminaribioside (4NP-G3SG, magenta); c thio-cellobioside (G4SG; cyan); and d thio-gentiobioside (G6SG-OMe, inexperienced) moieties are certain throughout the −1 to +2 subsites. Panels a to d comprise derived distinction 2 m|Fo|-D|Fc| electron density maps (blue) of thio-analogues (additionally proven as insets rotated by round −90o by way of x-axes relative to predominant panels) contoured at 1.0 σ ranges. Polyethylene glycol (PEG) and water molecules are proven in cpk orange sticks and purple spheres, respectively. Distances at separations inside 3.3 Å are proven in dashed traces. Ligand designations above structural pictures point out thio-analogues that have been perfused in crystals.

Substrate specificity of WT, and Trp286 and Trp434 mutants

We in contrast relative hydrolytic charges of β-linked poly- and oligosaccharides, and aryl-glycosides beneath optimum physico-chemical situations (Supplementary Fig. 1; Supplementary Desk 2; Supplementary Be aware 1). Of the examined mutants, W434H was the one mutant that exhibited broad substrate specificity just like WT, opposite to W286F and W286Y, and W434F, W434Y, W286F/W434F, and W286F/W434A that lacked actions of at the least with one carbohydrate substrate (Supplementary Desk 2). The absence of hydrolytic actions was noticed with (1,4;1,3)-β-d-glucans (barley glucan and lichenin) and 4NP-cellobioside in all mutants besides W434H and a lower in hydrolytic charges with oligomeric substrates and aryl β-d-glucosides besides in W286Y with 4-nitrophenyl β-d-glucopyranoside (4NP-Glc) (Supplementary Desk 2). Remarkably, W434A misplaced all hydrolytic actions with poly- and oligosaccharides, besides (1,3)-β-d-linked β-d-glucosides, turning this mutant right into a strict (1,3)-β-d-glucosidase, albeit with low particular actions (Supplementary Desk 2). Our findings counsel that though the mutations of Trp286 to Ala and His led to folded however inactive enzymes, enzyme exercise retention is extra delicate to alterations of Trp286 than Trp434, doubtless because of the proximity of Trp286 to Asp285, the catalytic nucleophile (Supplementary Desk 2).

Regular-state kinetic constants of WT, and Trp286 and Trp434 mutants

In keeping with our predictions, catalytic fee okcat (first-order fee) constants and in some situations, Michaelis-Menten OkM values of single W286A, W286H, W286F, W434A, W434H, W434F, and W434Y, and double W286F/W434F and W286F/W434A mutants with poly- and oligomeric substrates decreased in comparison with WT (Supplementary Desk 3). This pattern continued with the catalytic effectivity okcat/OkM (second-order fee) constants, the place these values corresponded to these of relative hydrolytic charges (Supplementary Desk 2). These values confirmed the strict (1,3)-β-oligosaccharide specificity of W434A, with little change within the obvious energy of binding of laminaribiose, however by an about 21-fold lower of okcat (in comparison with WT), consequently yielding a low okcat/OkM worth. An identical profile was famous for W286F/W434A, though on this case, the kinetic parameters decreased much more, pointing to a destructive impact of the non-conservative (radical) W434A mutation on substrate binding and hydrolysis (Supplementary Desk 3). Notable was the behaviour of W286Y that confirmed elevated catalytic effectivity values with (1,3;1,6)-β-d-glucan (laminarin), laminaribiose (G3OG), and 4NP-Glc, whereas these values in W434Y have been significantly decrease (Supplementary Desk 3). In W286F/W434F, the catalytic effectivity values have been additionally drastically lowered in comparison with WT, whereas the W434H and W434F mutants confirmed larger catalytic effectivity than the double mutants, with W434F being extra energetic besides with laminaribiose. These knowledge sign that though the mutations of Trp434 affected the catalytic properties of HvExoI extra considerably in comparison with Trp286, each Trp residues are required for binding the isomeric β-d-glucosides to realize productive binding modes required for prime catalytic effectivity.

Inhibition constants Ok
i of WT, and Trp286 and Trp434 mutants

To additional look at binding modes of β-d-glucosides, we used the thio-analogues with (1,2)-, (1,3)-, (1,4)- and (1,6)-linkages to quantify obvious inhibition constants (Oki) of the HvExoI:inhibitor complexes (Supplementary Desk 4). In WT HvExoI, the (1,3)-β-d-linked (4NP-G3SG), (1,4)-β-d-linked (G4SG-OMe), and (1,6)-β-d-linked (G6SG-OMe) thio-analogues confirmed a aggressive inhibition with Oki values in low to medium micromolar ranges, besides G2SG-OMe, which was weakly inhibitory (Supplementary Desk 4). The W434A mutant was delicate to 4NP-G3SG and G4SG-OMe, and the information with 4NP-G3SG correlated with substrate specificity and catalytic effectivity (Supplementary Tables 2 and three). As anticipated, the (1,3)- and (1,4)-linked thio-inhibitors have been much less potent with examined mutants, whereas the best thio-inhibitor was G6SG-OMe, besides that it didn’t bind to W434A, and in comparison with WT, it confirmed 8- and 6-fold larger Oki fixed values with W434H and W434F, respectively (Supplementary Desk 4). These knowledge identified that the replacements of Trp434 with Ala, His, or Phe residues within the +1 subsite, disturbed the optimum binding of thio-analogues, because of the elimination or weakening stacking interactions essential for the proper positioning of inhibitors within the energetic web site.

WT and mutant HvExoI:thio-β-d-glucoside complexes reveal the main points of binding on the atomic stage

We noticed that the thio-analogue Oki constants (besides G2SG-OMe) measured with the Trp286 and Trp434 mutants, correlated with their capability to hydrolyse (1,3)-, (1,4)- and (1,6)-linked β-d-glucosides. To decipher their exact binding modes on the atomic ranges, we pursued structural research (Figs. 2–4; Supplementary Figs. 2–4; Supplementary Tables 5 and 6).

G2SG-OMe binding

The G2SG-OMe thio-analogue certain weakly to native and WT recombinant HvExoI with the respective Oki of two ×10−3 M and 4 ×10−3 M (Supplementary Desk 4), reflecting its potential to connect on the +1 and +2 subsites as an alternative of the −1 and +1 subsites (Fig. 2a)22, which was almost definitely because of the rigidity of this thio-ligand. Alternatively, in W286F the electron density map of G2SG-OMe was outlined on the −1 and +1 subsites (Supplementary Fig. 2c), the place this thio-ligand fashioned H-bonds with Asp95, Lys206, His207, Arg158, Tyr253, Asp285, Arg291, and Glu491, and stacking interactions with W286F and Trp434, whereas G2SG-OMe didn’t bind to W286A and W286Y. The inclinations of G2SG-OMe on the −1 and +1 subsites within the W434A, W434F, W434H, and W434Y mutants (Figs. 3a, 4a; Supplementary Figs. 3a and 4a) revealed related structural options of the ligand binding to these seen in W286F (Supplementary Fig. 2c).

4NP-G3SG and 4NP-G3SG3OG binding

4NP-G3SG certain tightly to native and WT recombinant HvExoI with the Oki fixed of 0.7 ×10−3 M (Supplementary Desk 4); the Oki worth of 0.2 ×10−3 M was beforehand noticed with 4NP-G3SG3OG in WT HvExoI3. These comparatively tight binding constants advised that these thio-analogues needs to be seen within the energetic websites, as we noticed with WT, and the W286F, W434A, W434F, W434H, and W434Y mutants. The well-defined electron density maps of the (1,3)-linked thio-ligands illustrated that the saccharide moieties have been connected by the networks of H-bonds fashioned between 9 to 10 residues in every case (Figs. 2b, 3d, 4b; Supplementary Figs. second, 3b, 4b). The 4NP-G3SG thio-analogue in WT was positioned on the +1 to +2 subsites, with the 4NP group clearly discernible on the +2 subsite (Fig. 2b). Nevertheless, in W286A, and W286Y, 4NP-G3SG was not noticed, and in W286F, the reducing-end Glc moiety of 4NP-G3SG on the +1 subsite remained disordered (Supplementary Fig. second). This emphasised that the Trp286 mutations to Ala, Tyr, and Phe disturbed the binding of (1,3)-linked thio-β-d-glucosides and that this residue was obligatory for inhibitor binding.

G4SG-OMe and G4SG4OG4SG4OG4SG binding

G4SG-OMe certain to native and WT recombinant HvExoI with the Oki values of 1.0 ×10−3 M (Supplementary Desk 4). This compares favourably to the hexasaccharide G4SG4OG4SG4OG4SG, the place we beforehand noticed the Oki fixed of 0.6 ×10−3 M with native HvExoI2. These binding constants advised that the (1,4)-linked thio-analogues ought to find within the enzyme’s energetic websites. This occurred with WT, and the W434A, W434F, W434H, and W434Y mutants, whereas no binding was noticed within the W286A, W284F, and W286Y mutants. The well-defined electron density maps in W434A (Fig. 3c) and W434F (Supplementary Fig. 3c) revealed three saccharide moieties on the −1 to +2 subsites with the decreasing thio-saccharide moiety protruding past the atmosphere of the energetic web site pocket on the +2 subsite. In W434A, we noticed that the tri-thio-cellobioside moiety was considerably misplaced (in comparison with WT) and that the W434A substitution unexpectedly allowed Lys493 to be rotated outward and turn out to be engaged within the binding of this thio-ligand; right here, 11 residues participated in forming H-bonds with tri-thio-cellobioside moiety (Fig. 3c). To generate the W434H and W434Y complexes, we perfused the G4SG-OMe ligand, consequently, solely two thio-saccharide moieties have been noticed in energetic websites (Fig. 4c; Supplementary Fig. 4c). However with W286H, and W286Y, we couldn’t see the binding of G4SG-OMe, which correlated with their weaker Oki values in comparison with WT (Supplementary Desk 4), and advised that the conservative Trp286 mutation to Phe and Tyr affected the binding of (1,4)-linked thio-β-d-glucosides.

G6SG-OMe binding

G6SG-OMe certain tightly to native and WT recombinant HvExoI with the respective Oki values of 0.1 ×10−3 M and 0.2 ×10−3 M (Supplementary Desk 4), hinting that this thio-analogue needs to be noticed within the energetic websites of WT and mutants (Figs. second, 3d, 4d; Supplementary Figs. 2a, b, e, 3d, 4d). That is what we certainly noticed in WT, and the W286A, W286Y, W286F, W434A, W434F, W434H, and W434Y mutants, the place well-defined electron density maps of G6SG-OMe and tight H-bond networks that have been fashioned by eight to 10 residues (Asp95, Lys206, His207, Arg158, Tyr253, Asp285, Arg291, Glu491, Trp286, and Trp434). In W434A we observed roughly 120o rotation (by the x-axis) of the reducing-end moiety of G6SG-OMe in comparison with its disposition in WT (or in-solution construction of G6OG or gentiobiose), because of the presence of a rotatable C1-O-C6 glycosidic bond of G6SG-OMe; this didn’t happen in WT or different mutants. To search out out, if the Glc molecule alone adopts related or completely different inclinations on the −1 and +1 subsites, we perfused Glc into WT, W434A, and W286Y, and in contrast their positions, which on the −1 subsite have been similar in all situations, however on the +1 subsite of W434A the Glc molecule was disordered (knowledge not proven). We famous that the standard of the G6SG-OMe electron density map barely declined in W286Y (Supplementary Fig. 2b) however that these maps have been well-formed in W286A and W286F (Supplementary Fig. 2a, e), suggesting that within the W286Y mutant the method of ligand-binding in (or close to) the energetic web site could have been perturbed. These findings reinforce the conclusion that G6SG-OMe binds in HvExoI no matter mutations (significantly into fragrant residues) of Trp286 or Trp434. Though these mutations impression the exact orientation of the glucopyranoside moieties, as noticed in W434A, they enable G6SG-OMe binding.

Conformational behaviour of S- and O-linked β-d-glucosides

To find out the conformational panorama of β-d-glucosides certain in HvExoI, we analysed enzyme-thio-ligand-binding modes within the crystal buildings earlier than and after cMD simulations. As described above, the β-d-glucopyranose rings of thio-saccharide analogues on the −1 subsites within the WT crystal construction complexes have been engaged in H-bond networks and noticed within the 4C1 conformation for G2SG-OMe and G6SG-OMe, the 4H3 conformation for 4NP-G3SG, and the 4E/4H3 conformations for G4SG4OG (Supplementary Figs. 5 and 6; Supplementary Desk 7), whereas the β-d-glucopyranose moieties of thio-ligands on the +1 subsites adopted the 4C1 conformation. To analyse the dynamic behaviour of β-d-glucosides, a complete of eight fashions have been generated for G2(S or O)G, G3(S or O)G, G4(S or O)G, and G6(S or O)G techniques, whereby we reverted mutations (if current) in HvExoI, eliminated ions and different molecules from thio-analogues, and for the O-linked techniques, changed S-atoms with O-atoms. Whereas cMD simulations revealed that β-d-glucopyranose rings in thio-analogues adopted predominantly the 4C1 conformations in each subsites, alternate conformations additionally participated, akin to 4H3/4E/4H5 or 1S3/1,4B, relying on a sort of the glycosidic linkage (Fig. 5; Supplementary Fig. 6; Supplementary Desk 7). Moreover, we reconstructed O-derivatives within the energetic websites primarily based on the thio-analogue complexes and subjected these to cMD (Fig. 5; Supplementary Fig. 7; Supplementary Desk 7). In comparison with the analyses of the thio-analogue complexes mentioned above, these knowledge indicated that the β-d-glucopyranose rings of G2OG, G3OG, G4OG4OG, and G6OG adopted primarily 4C1 conformations in each subsites, though different states contributed to binding within the −1 subsite (32% within the 4H5/4E area for G3OG, and respective 5%, 10% and 27% in 4H3, 4E, 4H5 areas for G2OG, G6OG, and G4OG4OG). Within the +1 subsite, the G3OG β-d-glucopyranose ring was positioned at respective 66% and 28% within the 4C1 and 2SO areas, whereas the β-d-glucopyranose rings of G2OG, G6OG, and G4OG4OG occupied the 4C1 areas in additional than 90% of occurrences (Supplementary Desk 7). Notably, the Mercator projection of G3OG (Supplementary Fig. 8) concurred with its conformational Free Power Panorama (FEL) map (Supplementary Fig. 9), computed by QM/MM MD metadynamics. As just lately discovered for different exo-acting GH enzymes35,36, these findings predicted that HvExoI doubtless reveals a two-fold hydrolytic itinerary with a positionally isomeric disaccharide akin to G3OG, the place the hydrolytic response begins both from a distorted 4H3/4E/4H5 area or from an undistorted 4C1 β-d-glucopyranosyl ring, which might evolve in direction of a transition state with a 4H3/4E conformation in each instances.

Fig. 5: Conformational behaviour of O-linked oligosaccharides certain within the energetic web site of HvExoI calculated by cMD simulations plotted as a perform of θ and φ puckering coordinates.
figure 5

a Sophorose (G2OG; pink); b laminaribiose (G3OG; magenta); c cellotriose (G4OG4OG; cyan); and d gentiobiose (G6OG; inexperienced) ligands are certain on the −1 to +2 subsites (color gradients from purple at 0 ns to yellow at 200 ns in Mercator projections are indicated). Complexes of WT with G3SG,  G4SG4OG, G6SG, and W434A in advanced with G2SG have been used to foretell binding modes of O-linked oligosaccharides. The β-d-glucopyranose moieties on the −1 to +2 subsites, and inclinations of Asp285 and Glu491 catalytic residues are additionally proven.

Binding and hydrolysis of the G4OG3OG pure substrate have been explored by way of cMD and QM/MM MD metadynamics simulations

To know the binding of one of many pure substrates of HvExoI, we chosen the kinked G4OG3OG oligosaccharide (Fig. 6; Supplementary Figs. 10 and 11), which is the important thing hydrolytic product originating from (1,4;1,3)-β-d-glucans; these polymers fulfil the function of structural cell wall parts in cereals, akin to barley5. The advanced with G4OG3OG was generated primarily based on the WT HvExoI:G4SG4OG advanced (Fig. 2c), upon changing G4 with G3. The evaluation of cMD simulations of this advanced confirmed that the Glc moieties of G4OG3OG adopted the secure 4C1 conformations on the +1 and +2 subsites (Supplementary Fig. 10). Nevertheless, Glc on the −1 subsite adopted a state, that was almost similar to the Glc moiety in G3OG, and never solely an ideal chair, thus we outlined it as a pseudo-chair (Supplementary Fig. 10b). Once more, that is in step with the conformational FEL of G4OG3OG at −1 subsite, computed by QM/MM MD metadynamics (Fig. 6a; Supplementary Fig. 11), which reveals a large free vitality minimal that extends from 4C1 in direction of 4H3.

Fig. 6: Binding of the G4OG3OG pure substrate within the HvExoI energetic web site calculated by way of cMD and QM/MM MD metadynamics simulations, plotted as a perform of θ and φ puckering coordinates.
figure 6

a Conformational FEL map of the Glc moiety on the −1 subsite in WT; Glc moieties of G4OG3OG within the subsites −1 to +2 are indicated together with the important thing residues; b conformational behaviour (Mercator projection) of the G3OG product after the −1 Glc moiety is hydrolysed from G4OG3OG and faraway from the −1 subsite in WT; c conformational behaviour (Mercator projection) of the G3OG product after the −1 Glc moiety is hydrolysed from G4OG3OG and faraway from the −1 subsite in W434A. Color gradients from purple at 0 ns to yellow at 150 ns in Mercator projections are proven. In b, c, respective cluster analyses of trajectories (populations in %) point out two modes of G3OG binding in WT and W434A, the place every saccharide binds within the +1 and +2 subsites or Glc moieties bind in middleman positions between these subsites and the −1 subsite.

Moreover, we investigated the binding of the G3OG product originating from the G4OG3OG substrate in WT and the W434A mutant, after the non-reducing Glc moiety was cleaved off, utilizing cMD simulations (Figs. 6b, c). The cluster evaluation of the trajectory of the G3OG product in WT indicated that the Glc moieties adopted at the least two poses: ~96% of the populations positioned within the +1 and +2 subsites, and ~4% to the middleman poses on the −1 and +1 subsites (Fig. 6b). Conversely, the cluster evaluation of the G3OG product in W434A indicated a dramatic shift in poses to ~15% of the populations positioned within the +1 and +2 subsites, and ~74% to the middleman (halfway) poses on the −1 and +1 subsites (Fig. 6c). These observations indicate that Trp434 performs a key function within the sliding of the (1,3)-β-d-linked hydrolytic merchandise by the energetic web site throughout catalysis and that Trp434 prevents the sliding of mixed-linkage substrates.

Binding and displacements of laminaritriose (G3OG3OG) and laminarihexaose (G3OG3OG3OG3OG3OG) hydrolytic merchandise

These research have been carried out within the WT, W434H, and W434A enzymes with energetic websites accommodating hydrolytic merchandise of laminaritriose, i.e. Glc within the −1 subsite and laminaribiose (G3OG) within the +1 and +2 subsites, or laminarihexaose, i.e. Glc on the −1 subsite and laminaripentaose (G3OG3OG3OG3OG) within the +1 and +2 subsites, and uncovered to bulk solvent. The collection of these mutants was primarily based on relative hydrolytic charges of poly- and oligosaccharide substrates, the place these mutants both retain (W434H) or lose (W434A) their broad substrate specificity (Supplementary Desk 2). To evaluate the impact of saccharides on HvExoI behaviour, cMD simulations have been additionally carried out with the WT apo-form, missing certain Glc or β-d-glucosides.

The cMD and GaMD simulations with laminaritriose and laminarihexaose hydrolytic merchandise indicated that the WT construction was secure (Supplementary Fig. 12), as indicated by spine Root-Imply-Sq.-Deviation (RMSD) values, though excessive mobilities in some loops have been detected. Conversely, cMD and GaMD simulations of W434H and W434A with laminaritriose and laminarihexaose hydrolytic merchandise confirmed contrasting behaviour in comparison with WT (Supplementary Fig. 12). cMD simulations of the mutants with the Glc and the G3OG merchandise (run for 1000 ns) revealed that the protein backbones remained secure (respective RMSD values: 1.7 Å for W434H, and 1.25 Å for W434A) and that Glc was connected on the −1 subsite, however, after round 100 ns in W434H and 200 ns in W434A, G3OG moved to bulk solvent, indicating that the mutants have been ineffective in retaining the G3OG product (Supplementary Fig. 13). Such behaviour was not noticed with laminarihexaose hydrolytic merchandise, throughout the time-frames of cMD simulations (600 ns), whereby these merchandise remained connected in WT and each mutants (Supplementary Fig. 13). These simulations point out that the dynamics of ternary complexes of mutants introduced variabilities in comparison with WT, the place these variations rely on the size of hydrolytic merchandise certain, i.e. longer merchandise have been extra secure.

To resolve variability with the size of hydrolytic merchandise in mutants, GaMD simulations (800 ns) with enhanced sampling have been performed. We discovered that the protein scaffold of the W434A mutant was extra versatile (RMSD worth 2.5 Å) than that of WT or W434H (RMSD values between 1.0 Å − 1.5 Å) (Supplementary Fig. 12), and that the Gly210-Met230 loop within the neighborhood of the catalytic web site exhibited Root-Imply-Sq.-Fluctuation (RMSF) values of as much as 7 Å in each mutants in comparison with WT (RMSF worth ≤ 2 Å). Whereas Glc remained extremely restrained within the −1 subsite in WT and W434H, it was cellular in W434A, hinting that the general flexibility of the catalytic web site was little affected in W434H, however strongly affected in W434A. Throughout GaMD simulations, the G3OG and laminaripentaose merchandise remained certain in WT, however G3OG vacated the catalytic web site in each mutants, in distinction to laminaripentaose, which initially remained certain (~25% and ~50% of simulation time for W434A and W434H, respectively), however ultimately, it traversed to bulk solvent. These findings advised that the replacements of Trp434 by His and particularly by Ala led to a lack of G3OG and laminaripentaose retention, and thus, a possible unbinding of those merchandise may happen earlier than the subsequent catalytic cycle begins. This additionally implies that in W434H and W434A, however not in WT, the (1,3)-linked merchandise would want to re-bind and can’t slide by the energetic web site uninterrupted.

Glc displacement route (egress) or substrate-product assisted processivity in WT

The modelling of the Glc displacement from the −1 subsite carried out with GPathFinder37, commenced from essentially the most populated cluster of buildings primarily based on cMD, to additional discover dynamic traits of Glc unbinding. These calculations have been executed in two preparations with (i) Glc on the −1 subsite and laminaripentaose within the +1 and +2 subsites and bulk solvent (Figs. 7, 8; Supplementary Motion pictures 1–3), or Glc on the −1 subsite and G3OG within the +1 and +2 subsites (Supplementary Fig. 14); and (ii) Glc within the −1 subsite and the di- and pentasaccharide merchandise eliminated to discover the Glc egress route with out merchandise being certain.

Fig. 7: Glc displacement routes in WT, and the W434H, and W434A mutants of HvExoI with Glc and laminaripentaose, calculated by cMD and GPathFinder.
figure 7

a WT; b W434H; c W434A – 4 steps alongside Glc displacement routes primarily based on converged buildings in advanced with Glc (−1 subsite; carbons in cpk yellow traces, and spheres) and laminaripentaose (+1 and +2 subsites and bulk solvent; carbons: magenta sticks) obtained by docking. Chosen residues (carbons: atomic sticks), and positions of Glc, and laminaripentaose are indicated. Glc within the −1 subsite is separated from the lateral cavity that’s evolving throughout Glc egress by the participation of the Arg158-Asp285-Glu491 toll-like barrier (triangles in dashed traces; distances indicated in Å). Floor morphologies of buildings are colored by electrostatic potentials: white, impartial; blue, +5 kT·e−1; purple, −5 kT·e−1. Separations in Å between the positions of C1 carbons of Glc molecules, as they transfer from the −1 subsites in preliminary and ultimate buildings are indicated. The lateral cavity (a, b; indicated in black dotted ellipsoids) kinds transiently, is partly uncovered to bulk solvent, and facilitates Glc displacement. In panel c, Glc is displaced to bulk solvent by the opening fashioned by the W434A mutation.

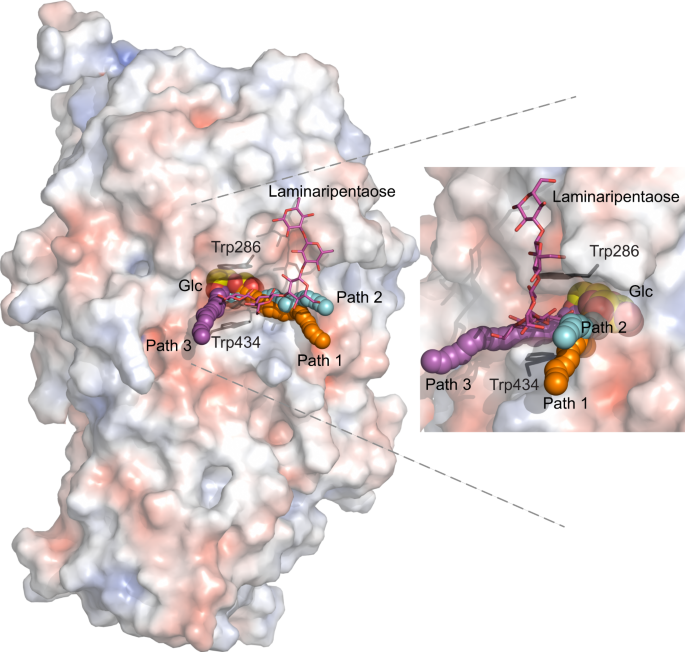

Fig. 8: Glc egress paths 1-3, illustrated on the highest of WT HvExoI with certain Glc (carbons in cpk yellow traces, and spheres) and laminaripentaose (cpk magenta sticks).
figure 8

Path 1 (WT and W434H), path 2 (W434A), and path 3 (vertical) are depicted in orange, cyan, and magenta spheres, respectively, and aligned subsequent to one another. Path 3 is discovered when no ligand is certain on the +1 and +2 subsites. Illustrated trajectories signify frames that correspond to consecutive levels of Glc egress with conforming coordinates for Glc in every body. Glc egress paths have been recognized by cMD simulations and GPathFinder. Floor morphology is colored by electrostatic potentials: white, impartial; blue, +5 kT·e−1; purple, −5 kT·e−1. Positions of Trp286 and Trp434 delineating the +1 subsite, are indicated in gray sticks. The fitting panel depicts the detailed view of paths 1-3, with HvExoI being rotated by round −80o by way of the y-axis relative to the left panel.

Preliminary simulations carried out with WT (Glc on the −1 subsite and laminaripentaose within the +1 and +2 subsites and bulk solvent) yielded the Glc egress path (path 1) (Figs. 7a, 8; Supplementary Film 1), which was facilitated by the re-orientation of a toll-like Arg158-Asp285-Glu491 barrier (together with the side-chain of Asp285) and the motions of the loop carrying Tyr253. Subsequent, Glc migration induced a rotation of Tyr253 that opened the lateral cavity because of the disruption of the Arg291-Glu220 salt bridge – these re-orientations and motions collectively opened the lateral cavity for Glc to exit. Throughout these simulations, CH–π interactions between the non-reducing-end Glc moiety of laminaripentaose and the Trp286/Trp434 fragrant clamp remained stationary, holding the Glc moiety within the +1 subsite.

GPathFinder simulations with W434H (Glc on the −1 subsite and laminaripentaose within the +1 and +2 subsites and bulk solvent), revealed that the Glc egress path was similar to that of WT (path 1) (Figs. 7b, 8; Supplementary Film 2). Right here, a toll-like Arg158-Asp285-Glu491 barrier additionally re-oriented, Asp285 modified its rotameric state, and as Glc superior by the lateral cavity, the side-chain of Tyr253 re-orientated, and the Arg291–Glu220 salt bridge was damaged – these occasions enlarged the lateral cavity quantity and facilitated Glc egress from the −1 subsite to bulk solvent.

For the W434A mutant (Glc on the −1 subsite and laminaripentaose within the +1 and +2 subsites, and bulk solvent), GPathFinder recognized a special Glc exit path (path 2) (Figs. 7c, 8; Supplementary Film 3). On this mutant, Glc exited by the preformed energetic web site opening after the non-conservative mutation of W434 into Ala, whereas the Gly210-Met220 loop adopted a place that was seen in WT. This was supported by the upper flexibility of the area containing W434A, which adopted an altered conformation ensuing from the displacement of Trp430 that might in any other case block path 2. On this Glc egress path, the toll-like Arg158-Asp285-Glu491 barrier, Tyr253, and the Arg291-Glu220 salt bridge weren’t concerned.

When laminaripentaose was faraway from the +1 and +2 subsites (and bulk solvent) in WT, W434H, and W434A, we recognized path 3 (we termed it vertical) for Glc displacement (Fig. 8), the place Glc utilised the area vacated by laminaripentaose and exited by way of the Trp286/Trp434 fragrant clamp, and thru the +2 subsite into bulk solvent. This path may solely be accessible when no merchandise or substrates are certain. This situation for Glc egress is, nevertheless, solely a hypothetical choice, additionally difficult our earlier examine22, the place in native HvExoI, two Glc molecules have been certain on the −1 and +1 subsites, successfully blocking path 3.

In abstract, GPathFinder simulations revealed that path 1 is the popular route in WT and W343H with certain (1,3)-linked hydrolytic merchandise, and is unbiased of a substrate size, opposite to W434A, which utilises path 2, the place the important structural attributes of substrate-product assisted processivity (toll-like barrier, salt bridge, loop motions, lateral cavity) don’t take part.
