# Sensible delicate contact lenses for steady 24-hour monitoring of intraocular stress in glaucoma care

Pinterest
WhatsApp

### Gadget configuration and dealing precept

Determine 1a reveals the layered schematic view of the SSCL. The interior ocular tonometer is comprised of intrinsically delicate and stretchable elastomers, together with: (1) polydimethylsiloxane (PDMS) for biocompatible encapsulation; (2) polystyrene-b-poly(ethylene-ran-butadiene)-b-polystyrene (SEBS) embedded with silver (Ag) flakes (AgSEBS) for conducting traces; and (3) Silbione liquid silicone rubber (Bluestar Silicones; East Brunswick, Inc.) with the mechanical modulus (E) of ~5 kPa for a extremely compressible dielectric interlayer. These elastomers had been immediately printed right into a sequence resistor-inductor-capacitor (RLC) resonant circuit (Supplementary Fig. 1a) by way of the usage of an automatic nozzle injection system (Nordson EFD) geared up on a three-axis computer-controlled translation stage (Supplementary Fig. 1b) in a fast high-throughput method (i.e., ≥30 items per batch inside 30 min of printing). The ensuing ocular tonometer was then bonded onto the outer floor of the delicate contact lens by way of the in situ polymerization of a polydopamine (PDA) adhesive, which has similarities to the bonding of marine mussels in nature (Supplementary Fig. 2)25. The in situ polymerization of the PDA adhesive is irreversible and penetrates into the higher floor of economic delicate contact lenses to type a everlasting interplay, which is essential to making sure the mechanical sturdiness of the SSCL for long-term routine use. Particulars of the supplies and manufacturing course of are described within the Strategies part.

The underlying working precept of the ocular tonometer is as follows. An increase in IOP causes a rise within the curvature radius of a watch (i.e., roughly 3 µm mmHg−1) by which the ocular tonometer is stretched and compressed within the radial and axial (i.e., thickness) instructions, respectively11. The geometric deformation of the ocular tonometer causes a rise in inductance and capacitance within the RLC resonant circuit, which ends up in a detectable lower in resonance frequency26:

$${f}^{-1}=,2Pi sqrt{{LC}}$$

(1)

Determine 1b presents the information acquisition scheme through which the ocular tonometer is inductively coupled to a reader coil in a proximity of lower than 10 mm. The reader coil might be embedded inside a typical eyeglass body or sleep eye masks for daytime and nighttime IOP monitoring, respectively. Throughout IOP measurements, the reader coil is wired to a transportable vector community analyzer (VNA) that permits the fixed acquisition of reflection coefficient (S11) spectrum. Determine 1c offers {a photograph} of the ocular tonometer constructed on a industrial delicate contact lens (Air Optix Night time & Day Aqua; Alcon, Inc.). The ocular tonometer was skinny (i.e., 50-µm thick), slender (i.e., 200-µm vast), and configured right into a serpentine (i.e., stretchable) ring form on the peripheral space and out of doors floor of the delicate contact lens. The internal diameter of the ocular tonometer (i.e., 13 mm) was considerably bigger than the everyday pupil diameter in adults (i.e., 2–8 mm) to guarantee clear central and peripheral imaginative and prescient in all instructions for wearers. Determine 1d presents the cross-sectional scanning electron microscopy (SEM) view of the ocular tonometer. The AgSEBS layers had been clearly separated by the Silbione layer, all of which had been completely encapsulated by the PDMS layer. As well as, the PDMS layer exhibited progressively tapered ends at an angle of 10–15° to scale back edge irritation when contact with the internal eyelid (Supplementary Fig. 3a). The ensuing SSCL was fitted properly to an enucleated pig eye that gives an anatomical similarity to the human eye in measurement and form (Fig. 1e)27. The SSCL shaped a extremely intimate and seamless interface alongside the corneal anterior floor of the pig eye by advantage of the ergonomic design of its naked delicate contact lens. This side is crucially necessary to keep up the measurement accuracy and repeatability of the SSCL significantly underneath ambulatory circumstances. Numerous industrial manufacturers of sentimental contact lenses had been relevant and not using a noticeable distinction in total high quality (Supplementary Fig. 3b), which have been confirmed secure for these even with power ocular ailments, together with glaucoma, or following incisional surgical procedures24. For all circumstances, the fuel permeability of the SSCL remained much like their naked delicate contact lenses (Supplementary Fig. 3c).

### Benchtop evaluations

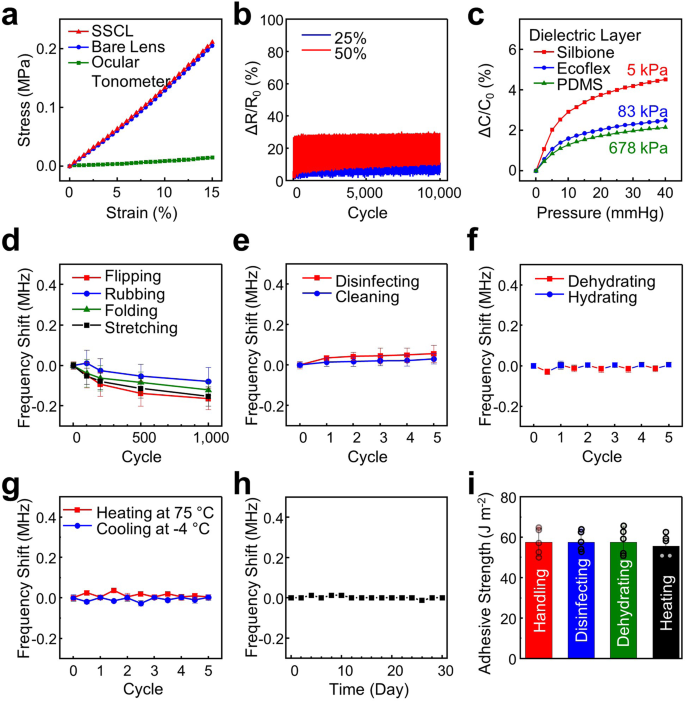

The SSCL (E = 1.34 ± 0.35 MPa) was as delicate as its naked delicate contact lens (E = 1.37 ± 0.27 MPa) primarily because of the substantial softness of the inner ocular tonometer (E = 0.08 ± 0.01 MPa) (Fig. 2a). The SSCL was additionally stretchable through which the inner ocular tonometer remained intact with out mechanical failure underneath stretching as much as >100% even after its naked delicate contact lens was torn aside on the utilized pressure of ~90% (Supplementary Fig. 4). Determine 2b presents that the relative resistance change (ΔR/R0) of the SSCL remained lower than 10% and 30% after 10,000 cycles of stretching at 25% and 50%, respectively. Determine 2c reveals the capacitance response of the SSCL underneath stress in a variety of 0–40 mmHg, which displays the everyday IOP vary of human eyes underneath regular (i.e., 10–21 mmHg) and hypertension (i.e., 21–40 mmHg) circumstances28. For comparability, various kinds of dielectric interlayers, together with the Silbione (E ≈ 5 kPa), Ecoflex (E ≈ 30 kPa), and PDMS (E ≈ 640 kPa), had been employed within the ocular tonometer. As anticipated, the usage of the softest dielectric interlayer (i.e., Silbione) led to the best capacitive sensitivity (i.e., 6.8 × 10−4 mmHg−1) over others. Particulars of calculating the capacitive sensitivity are described within the Strategies part.

The mechanical, electrical, and chemical reliability of the SSCL is an important consideration for its long-term use towards every day lens cleansing, disinfecting, storing, dealing with, and misuse circumstances (e.g., dehydrating and overheating). The SSCL satisfies all these wants. Particularly, the resonant frequency of the SSCL modified barely, or barely inside solely ±0.2 MHz, from its baseline following a number of cycles of mechanical deformations resembling flipping, rubbing, folding, and stretching (Fig. second); cleansing and disinfecting with industrial options (Renu; Bausch & Lomb, Inc. & Clear Care; Alcon Laboratories, Inc.) (Fig. 2e); 2-h dehydrating in ambient situation and 20-min rehydrating in a cleansing saline answer (Renu; Bausch & Lomb, Inc.) (Fig. 2f); 30-min important overheating at 75 °C and 30-min cooling to −4 °C (Fig. 2g); and 30-day storing in a saline answer (Renu; Bausch & Lomb, Inc.) (Fig. 2h). A complete of 5 measurements had been taken and averaged at every knowledge level with the error bars denoting normal deviations. Importantly, the adhesive power of the PDA layer (i.e., 57.55 ± 11.72 J m−2) was additionally maintained towards all these circumstances with none notable signal of delamination (Fig. 2i). The consultant photographs and video of the SSCL are proven in Supplementary Fig. 5 and Supplementary Video 1, respectively.

### Ex vivo evaluations in enucleated pig eyes

Determine 3c presents that the reflection spectra (S11) of the SSCL had been clearly shifted in response to ascending and descending IOP of the pig eye with negligible hysteresis. Determine 3d reveals the resonant frequency of the SSCL for 3 enucleated pig eyes with totally different dioptric corneal curvatures (i.e., 38.75, 38.37, and 39.37 D) and thicknesses (i.e., 948, 1084, and 1004 μm). No matter the corneal curvature and thickness, an empirical linear match was obtained for every pig eye with the corresponding responsivity and sensitivity of roughly 0.030 MHz mmHg−1 (R2 = 0.98) and 125 ppm mmHg−1, respectively. The excessive measurement accuracy and repeatability of the SSCL had been primarily attributed to its seamless and dependable match to the varied corneal curvatures and thicknesses of the pig eyes. For comparability, the outcomes of management experiments with an enucleated cow eye (typical corneal curvature ≥26 D) that’s dissimilar to the human eye (typical corneal curvature ≥40 D) in corneal curvature are summarized in Supplementary Fig. 6a–d. The measurement responsivity of the SSCL was significantly deteriorated because of the geometric discrepancy (i.e., interfacial hole) between the SSCL and the cow eye. Determine 3e, f reveals the impact of the angle (θ) and distance (d) between the SSCL and the reader coil on sign high quality. The corresponding reflection spectra are proven in Supplementary Fig. 6e, f. No shift within the baseline resonant frequency of the SSCL appeared at θ ≤ 50° and d ≤ 10 mm, indicating that the extent of attainable person misalignments or displacements might be accommodated with out important degradation in sign high quality. The general efficiency of the SSCL was additionally maintained when the reader coil was embedded inside an eyeglass body or a sleep eye masks (Supplementary Fig. 7).

### Cell viability and in vivo evaluations in rabbit eyes

The time-dependent cell viability of the SSCL to human corneal cell traces was assessed to establish any antagonistic response on the mobile stage. Particularly, human corneal epithelial cells (HCEpiCs) had been cultured in a medium (EpiGRO™ Human Ocular Epithelia Full Media; MilliporeSigma, Inc.) at 37.5 °C for 72 h. The cells had been seeded on the floor of the SSCL and measured utilizing an MTT (3-(4,5-dimethylthiazol-2-yl)–2,5-diphenyltetrazolium bromide) assay package (Sigma-Aldrich, Inc.). Particulars of the cell viability assay are described within the Strategies part. Determine 4a reveals the experimental outcomes obtained from the SSCL with out (blue bars) and with (inexperienced bars) the presence of the PDA adhesive as in comparison with its naked delicate contact lens (pink bars). The cell viability remained above 95% all through the assay interval with out notable variations among the many teams (n = 5 for every group). In flip, the SSCL poses little threat of creating corneal irritation.

The biofouling resistance (i.e., protein accumulation from tear fluid) of the SSCL was additionally assessed, which is related to ocular floor inflammatory issues resembling large papillary conjunctivitis29. Particularly, proteins had been incubated on the SSCL utilizing a 5 mg mL−1 of bovine serum albumin-fluorescein conjugate (BSA-FITC A23015; Fisher Scientific, Inc.) in a phosphate-buffered saline (PBS; pH 7.4) for two h at 37.5 °C, after which, the buildup of proteins was quantified over time through fluorescence imaging. Determine 4b presents that the buildup of proteins excessive floor of the inner ocular tonometer of the SSCL remained decrease in comparison with its naked delicate contact lens with **p < 0.01 in keeping with a one-way evaluation of variance (ANOVA) methodology with Tukey’s put up hoc take a look at. The decrease accumulation of proteins over the inner ocular tonometer of the SSCL is probably going attributed to the presence of its hydrophobic encapsulation layer (i.e., PDMS). Importantly, the accrued proteins had been cleanly eliminated after a disinfecting cycle with a industrial answer (Clear Care; Alcon Laboratories, Inc.) for each teams (Fig. 4c).

The in vivo tissue compatibility and long-term wearability of the SSCL had been assessed in rabbit eyes (n = 4) after becoming the SSCL on a watch for twenty-four h as in comparison with its naked delicate contact lens on the contralateral eye (Fig. 4d). The rabbit eye offers an anatomical similarity to the human eye in form and measurement27. The eyelids had been partially sutured (i.e., partial short-term tarsorrhaphy) to enhance the lens retention on the corneal floor. Particulars of the experiments in rabbit eyes are described within the Strategies part. Determine 4e offers a consultant anterior section ocular coherence tomography (AS-OCT) picture of a rabbit eye after 1 h of sporting the SSCL, which confirmed its conformational alignment with the cornea. No notable abnormality was noticed in two out of whole 4 rabbits whereas gentle hyperemia (grade 1; modified McDonald–Shadduck system) was famous within the palpebral conjunctiva of the opposite two rabbits with out notable variations between the left and proper eyes (Supplementary Fig. 8a). As well as, no notable abnormality was noticed after routine put on of the SSCL for 8 h a day for as much as 2 weeks in rabbit eyes (n = 2), with out suturing the eyelids, as in comparison with the bare eyes (Supplementary Fig. 8b).

Determine 4f reveals the corresponding histopathology photographs of rabbit eyes after 24 h of sporting the SSCL on a watch (left panel) and its naked delicate contact lens on the contralateral eye (proper panel). The rabbit eyes in each teams exhibited minimal to gentle lesions (grade 1–2) together with erosion of the conjunctival epithelium over the limbus with some edema and heterophilic or blended irritation. No notable variations had been noticed between the teams. Solely minimal accumulation of heterophils and lymphocytes appeared within the palpebral conjunctiva. As well as, the rabbit eyes after the 2-week routine put on of the SSCL exhibited no or minimal lymphocytic irritation (grade 1) within the palpebral conjunctiva with out notable distinction in comparison with the bare eyes (Fig. 4g). The minimal irritation is likely to be background lesions or attributable to the partial suture (i.e., partial short-term tarsorrhaphy) which is unassociated with sporting the SSCL. The quantitative assessments of histopathological irritation grades within the rabbit cornea and conjunctiva are summarized in Supplementary Desk 1. Particulars of evaluating the histopathology of the rabbit eyes are described within the Strategies part.

### In vivo evaluations in canine eyes

The in vivo 24-h sensing efficiency of the SSCL was assessed in a canine eye (feminine beagle; 10 months previous) underneath ambulatory circumstances utilizing a canine goggle (V2 Goggle; Rex Specs, Inc.) with a reader coil embedded (Fig. 5a). The canine eye offers an anatomical similarity to the human eye in form and measurement27. The consultant video of the canine throughout IOP monitoring is proven in Supplementary Video 2. For calibration, the IOP of the canine eye was additionally measured with a industrial ocular tonometer (iCare Tonovet Plus; iCare, Inc.) at an interval of two h by making use of a drop of an IOP-lowering medicine (0.005% Latanoprost; Bausch & Lomb, Inc.) following the primary measurement. Determine 5b reveals the common resonant frequency of the SSCL with respect to the IOP of the canine from six measurements at every time interval. An empirical linear match (i.e., resonant frequency = −0.16 × IOP + 244.11) was obtained with the corresponding responsivity and sensitivity of 0.16 MHz mmHg−1 (R2 = 0.88) and 662 ppm mmHg−1, respectively. Notably, the responsivity and sensitivity of the SSCL within the canine eye is increased than these within the enucleated pig eyes (Fig. 3d) primarily attributable to their becoming high quality affected by totally different corneal rigidity and irregularity of the eyes or the ex vivo setting with the insertion of cannulation needles30. The usual measurement errors within the canine eye remained bigger than these within the enucleated pig eye because of the continued blinking and eye actions of the canine underneath ambulatory circumstances.

Determine 5c presents the calibrated absolute IOP values of the canine eye sporting the SSCL for twenty-four h (from 9 am to 9 am on the subsequent day) in comparison with management measurements utilizing the iCare Tonovet Plus on the identical eye in an interval of 20 min. The SSCL enabled the continual 24-h monitoring of absolute IOP values within the canine’s eye underneath ambulatory circumstances whereas the iCare Tonovet Plus required the canine to stay nonetheless with its eyes open throughout the measurements. The measurements with the SSCL exhibited a typical IOP rhythm of the canine eye all through the day through which its total developments agreed properly with these related to the iCare Tonovet Plus. No notable degradation in sign high quality with the SSCL occurred no matter the blinking or eye actions of the canine. The outliers of the IOP measurements (e.g. from 9 am to 12 pm) utilizing the iCare Tonovet Plus had been primarily attributed to movement artifacts by the thrill of the canine.

### In-clinic evaluations of human eyes

The person consolation, ease of use, lens match, and visible subject of the SSCL had been examined in human eyes. Three adults (>18 years previous) who had worn contact lenses at the moment or beforehand had been included on this research. Contributors had been examined following consent and research institutional evaluation board approval. Previous to, throughout, and following every put on, the ocular well being and lens match of every participant had been examined by visible acuity, participant-reported consolation ranking, AS-OCT, and slit lamp biomicroscopic measurements. All contributors had been requested to attend an preliminary in-clinic qualification go to to ascertain baseline measures and an preliminary match of the SSCL. The lens match, visible acuity, and person consolation ranking of the SSCL had been in contrast with sporting its naked delicate contact lens or the Triggerfish lens on the contralateral eye.

Determine 6a reveals the photographic (left panel) and slit lamp biomicroscopic (proper panel) photographs of the SSCL in a participant. The insertion and elimination of the SSCL from the attention of a participant is proven in Supplementary Video 3. The SSCL was fitted properly on the attention with good centration and protection much like its naked delicate contact lens. The interior ocular tonometer of the SSCL was positioned on the outer peripheral fringe of the iris to be visually inconspicuous, and the place the utmost pressure occurred underneath any change of IOP31. The SSCL remained centered on the cornea, much like its naked delicate contact lens, throughout regular blinking and eye actions in all instructions of gaze (Supplementary Video 4). The displacement of the SSCL on the attention was quantitatively similar to that of its naked delicate contact lens (Supplementary Fig. 9). Determine 6b offers a consultant AS-OCT picture of the attention after 1 h of sporting the SSCL, confirming its conformational alignment with the cornea. As anticipated, the visible subject of the attention sporting the SSCL remained unchanged as in comparison with the bare eye because of the considerably bigger internal diameter of the inner ocular tonometer than the pupil diameter (Fig. 6c).

Determine 6d reveals the slit lamp biomicroscopic photographs of the attention after 6 h of sporting the SSCL (high panel) as in comparison with the bare eye (backside panel) by making use of a drop (~1 mg) of sodium fluorescein (Fluorets ophthalmic strips; Bausch & Lomb, Inc.). No indicators of corneal injury had been noticed following the wear and tear of the SSCL (Supplementary Video 5). Clinically insignificant superficial punctate corneal staining was famous within the corneal epithelial floor at a stage that’s generally noticed with all contact lens use32. The staining sometimes resolved inside 1 h following elimination of the SSCL. The bulbar and limbal conjunctiva of the attention exhibited solely gentle hyperemia (clinician grade ≤0.5) after >6 h of sporting the SSCL, which mirrored the response following the wear and tear of its naked delicate contact lens. No different issues had been famous.

For the quantitative evaluation of consolation stage, every participant was requested to finish a survey throughout and following put on of the SSCL, its naked contact lens, and the Triggerfish lens utilizing a easy 100-point numeric scale, the place a ranking of “100” represented extraordinarily uncomfortable/insupportable and a ranking of “1” completely comfy/unnoticeable in any respect, in an analogous method as beforehand utilized in many scientific research with sporting contact lenses33. Determine 6e reveals the common person consolation ranking following insertion, throughout put on, and following elimination of the SSCL, its naked delicate contact lens, and the Triggerfish lens at a time interval of 5 min for 60 min. All of the contributors had been in a position to receive an enough lens match with sporting the SSCL and settled right into a satisfying consolation stage. Particularly, the contributors reported unnoticeable adaptation of the SSCL (i.e., common ranking = 12.7 ± 5.4) inside roughly 20 min of wear and tear, which was barely increased in comparison with the management naked contact lens (i.e., common ranking = 4.0 ± 4.2). However, the contributors reported extreme discomfort throughout insertion (i.e., common ranking = 46.7 ± 30.1) and elimination (i.e., common ranking = 68.3 ± 6.2) of the Triggerfish lens with out noticeable stabilization over time (i.e., common ranking = 24.7 ± 10.9–68.3 ± 6.2).

### Ambulatory IOP monitoring in human eyes

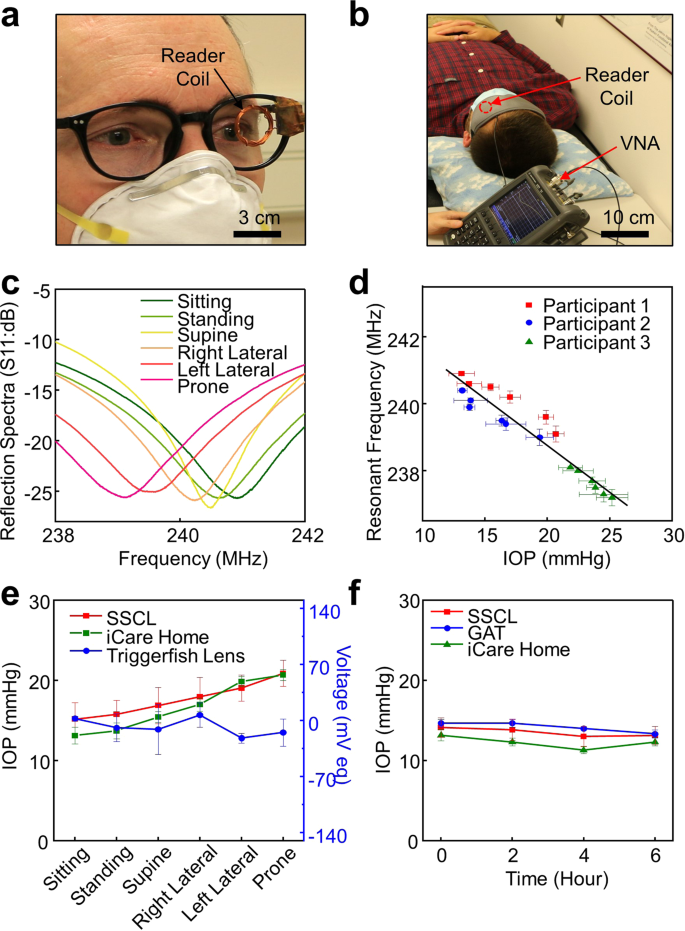

Determine 7e presents the calibrated absolute IOP values of a participant sporting the SSCL as in comparison with management measurements utilizing the iCare House and the Triggerfish lens on the identical eye. The measurement outcomes of the SSCL agreed properly with these of the iCare House, which additionally agreed with prior stories (Supplementary Fig. 10a)39,40,41,42. The IOP values of the SSCL had been strongly correlated with these of the iCare House no matter whether or not the eyelid was open or closed (Supplementary Fig. 10b). These outcomes had been reproduced in numerous batches of the SSCL utilizing the identical model (Air Optix Night time & Day Aqua; Alcon, Inc.) of its naked delicate contact lens (Supplementary Fig. 10c). However, the measurement outcomes of the Triggerfish lens barely agreed attributable to its problem in becoming quite a lot of corneal curvatures and thicknesses in human eyes. The weak correlation of the Triggerfish lens (i.e., relative IOP change in mV eq) with precise IOP values in human eyes has additionally been noticed in prior stories11,42.

Determine 7f reveals the time-varying change of absolutely the IOP worth in a participant sporting the SSCL for six h underneath ambulatory circumstances as in comparison with management measurements utilizing the iCare House and the GAT on the identical eye. The measurement outcomes of the SSCL had been nearer to these of the GAT over the iCare House. The excessive measurement accuracy and within-subject repeatability of the SSCL had been primarily attributed to its seamless and dependable match throughout totally different corneal curvatures and thicknesses of the eyes. Importantly, the SSCL induced no warmth not like the Triggerfish lens (Supplementary Fig. 11), and thereby can remove security dangers related to ocular burn and dehydration. To keep away from extreme heating of the Triggerfish lens, a ample time interval (i.e., 5 min) was utilized between every measurement43.
