Range of endophytic bacterial microbiota in grapevine shoot xylems varies relying on wine grape-growing area, cultivar, and shoot development stage

Facebook
Twitter
Pinterest
WhatsApp

Preliminary experiment utilizing grapevine shoot samples

To find out whether or not the profiles of endophytic bacterial microbiota fluctuate broadly between shoot samples collected from the identical grapevine plant or between shoot samples collected from completely different grapevine crops of the identical cultivar grown in the identical winery, a preliminary experiment was carried out. Microbiome evaluation demonstrated that the profiles of endophytic bacterial microbiota have been comparable between two shoot samples collected from the identical Chardonnay or Koshu grapevine plant (Fig. S2). As well as, the profiles of endophytic bacterial microbiota in shoot samples collected from completely different Chardonnay or Koshu grapevine crops cultivated in the identical winery have been additionally comparable (Fig. S2). These outcomes counsel that the profiles of endophytic bacterial microbiota in shoot samples collected from completely different grapevine crops of the identical cultivar grown in the identical winery have been uniform. On the idea of this discovering, we collected one shoot pattern from a grapevine plant, at two completely different shoot development levels (shoot elongation stage and véraison), of every cultivar grown within the eleven vineyards positioned in main grapevine-growing areas in Japan.

Climate information

GDDs from April 1 to October 31, 2020 demonstrated that Minamisanriku and Ueda belonged to Area III on the Winkler Index and that Komoro, Shobara, and Saijo belonged to Area IV on the Winkler Index (Supplementary Desk 2). Solely Urausu belonged to Area II on the Winkler Index. 5 vineyards together with Kofu, Kai, Katsunuma, Izumo, and Omishima belonged to Area V on the Winkler Index, suggesting that Chardonnay, Pinot Noir, and Cabernet Sauvignon have been cultivated underneath extraordinarily excessive temperatures in these vineyards. Precipitation from April 1 to October 31, 2020 exceeded 1700 mm in Shobara, the best among the many vineyards (Supplementary Desk 2).

Amplicon sequences collected from grapevine shoot xylems

A complete of seven,019,600 amplicon sequences from 52 samples have been collected (Supplementary Desk 3). We recognized a complete of 1305 OTUs on the idea of the standard criterion of 99% sequence similarity. No matter cultivar, grapevine-growing area, and shoot development stage, Alphaproteobacteria, Gammaproteobacteria, and Oxyphotobacteria have been predominant in shoot xylems (Fig. 1). Actinobacteria, Bacteroidia, Bacilli, and Clostridia have been the endophytic micro organism detected within the shoot xylems.

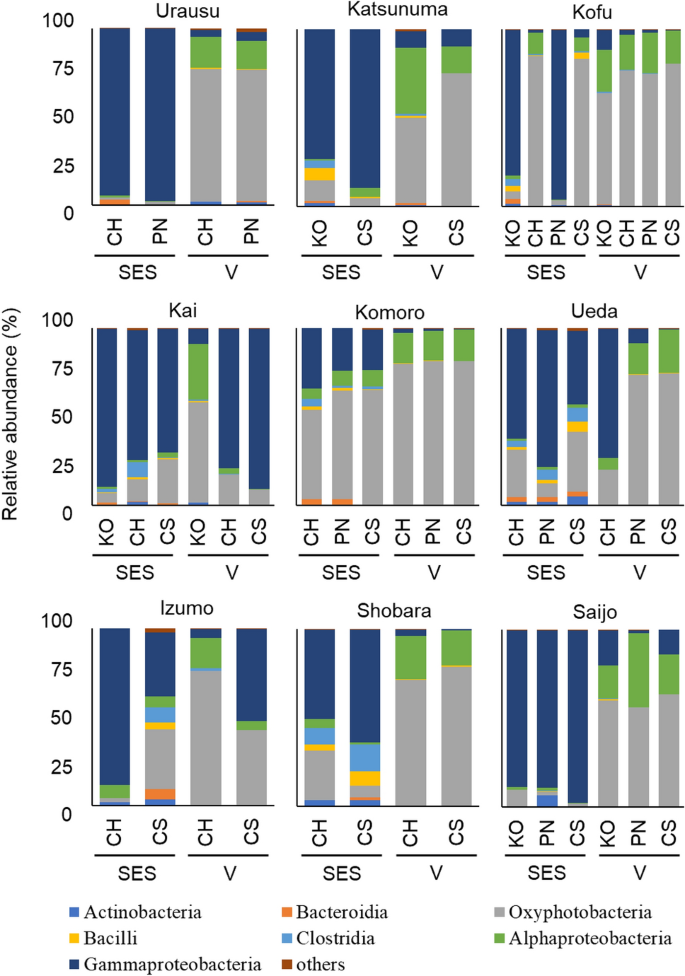

Determine 1
figure 1

Endophytic bacterial microbiota in shoot xylems of cultivars grown in the identical winery. Endophytic bacterial microbiota within the shoot xylems of every cultivar collected from 9 vineyards have been recognized and evaluated on the class degree. Information are offered as relative abundance (%). KO Koshu, CH Chardonnay, CS Cabernet Sauvignon, PN Pinot Noir, SES shoot elongation stage, V véraison.

Comparability of endophytic bacterial microbiota in grapevine shoot xylems of cultivars grown in the identical winery

Shoot samples of two or extra cultivars have been collected from 9 vineyards (Urausu, Katsunuma, Kofu, Kai, Komoro, Ueda, Izumo, Shobara, and Saijo) and evaluated (Fig. 1). Beneath are the detailed outcomes for every winery.

Urausu (Hokkaido Prefecture)

On the shoot elongation stage, greater than 90% of endophytic micro organism in Chardonnay and Pinot Noir shoot xylems belonged to class Gammaproteobacteria. Oxyphotobacteria was additionally detected within the shoot xylems albeit at a really low proportion (1% and a pair of% in Chardonnay and Pinot Noir, respectively). At véraison, the proportion of Oxyphotobacteria elevated and reached 75% and 74% in Chardonnay and Pinot Noir shoot xylems, respectively. Total, the profiles of endophytic bacterial microbiota have been very comparable between Chardonnay and Pinot Noir cultivated in Urausu at every shoot development stage.

Katsunuma (Yamanashi Prefecture)

On the shoot elongation stage, Gammaproteobacteria was predominant in Koshu and Cabernet Sauvignon shoot xylems, though Oxyphotobacteria and Bacilli have been detected as nicely. At véraison, the proportion of Oxyphotobacteria elevated and reached 48% and 75% in Koshu and Cabernet Sauvignon shoot xylems, respectively. The proportion of Alphaproteobacteria additionally elevated at véraison (37% and 15% in Koshu and Cabernet Sauvignon, respectively). Total, the profiles of endophytic bacterial microbiota have been comparable between Koshu and Cabernet Sauvignon cultivated in Katsunuma at every shoot development stage.

Kofu (Yamanashi Prefecture)

Shoot samples of Koshu, Chardonnay, Pinot Noir, and Cabernet Sauvignon have been collected from Kofu. On the shoot elongation stage, Gammaproteobacteria was predominant (roughly 90%) in Koshu and Pinot Noir shoot xylems, whereas greater than 80% of endophytic micro organism in Chardonnay and Cabernet Sauvignon shoot xylems belonged to class Oxyphotobacteria. At véraison, the profiles of endophytic bacterial microbiota have been comparable among the many 4 cultivars grown in Kofu, and Oxyphotobacteria was predominant.

Kai (Yamanashi Prefecture)

No matter the shoot development stage, Gammaproteobacteria was predominant in Chardonnay and Cabernet Sauvignon shoot xylems. Though Gammaproteobacteria was additionally predominant within the Koshu shoot xylems on the shoot elongation stage, the proportions of Oxyphotobacteria and Alphaproteobacteria elevated in Koshu shoot xylems at véraison (57% and 32%, respectively).

Komoro (Nagano Prefecture)

No matter the cultivar (Chardonnay, Pinot Noir, and Cabernet Sauvignon), the profiles of endophytic bacterial microbiota in shoot xylems have been very comparable at every shoot development stage, and Oxyphotobacteria was predominant. Greater than 80% of endophytic micro organism within the shoot xylems at véraison belonged to class Oxyphotobacteria.

Ueda (Nagano Prefecture)

The profiles of endophytic bacterial microbiota in shoot xylems on the shoot elongation stage have been comparable amongst Chardonnay, Pinot Noir, and Cabernet Sauvignon, whereas the profile in Chardonnay shoot xylems at véraison was completely different from these in Pinot Noir and Cabernet Sauvignon shoot xylems. Gammaproteobacteria (76%) was predominant in Chardonnay shoot xylem at véraison. In Pinot Noir and Cabernet Sauvignon shoot xylems at véraison, greater than 70% of endophytic micro organism belonged to class Oxyphotobacteria.

Izumo (Shimane Prefecture)

Not like different vineyards, there was no similarity of profiles between cultivars (Chardonnay and Cabernet Sauvignon) and between shoot development levels. Gammaproteobacteria and Oxyphotobacteria have been predominant in Chardonnay shoot xylems on the shoot elongation stage and véraison, respectively. In Cabernet Sauvignon shoot xylems, Gammaproteobacteria (36% and 52% on the shoot elongation stage and véraison, respectively) and Oxyphotobacteria (34% and 43% on the shoot elongation stage and véraison, respectively) have been predominant no matter the shoot development stage.

Shobara (Hiroshima Prefecture)

Equally to Urausu and Katsunuma, Gammaproteobacteria was predominant in Chardonnay and Cabernet Sauvignon shoot xylems on the shoot elongation stage. The proportion of Oxyphotobacteria elevated at véraison; greater than 70% of endophytic micro organism in Chardonnay and Cabernet Sauvignon shoot xylems at véraison belonged to class Oxyphotobacteria. Total, the profiles of endophytic bacterial microbiota have been comparable between Chardonnay and Cabernet Sauvignon cultivated in Shobara at every shoot development stage.

Saijo (Hiroshima Prefecture)

Equally to Urausu, Katsunuma, and Shobara, Gammaproteobacteria (89%, 89%, and 98% in Koshu, Pinot Noir, and Cabernet Sauvignon shoot xylems, respectively) was predominant on the shoot elongation stage and Oxyphotobacteria (60%, 56%, and 63% in Koshu, Pinot Noir, and Cabernet Sauvignon shoot xylems, respectively), at véraison. Total, the profiles of endophytic bacterial microbiota have been comparable amongst Koshu, Pinot Noir, and Cabernet Sauvignon cultivated in Saijo at every shoot development stage.

Comparability of endophytic bacterial microbiota in grapevine shoot xylems of cultivars grown in numerous vineyards

The profiles of endophytic bacterial microbiota within the shoot xylems of Koshu, Chardonnay, Pinot Noir, and Cabernet Sauvignon cultivated in numerous vineyards have been evaluated (Fig. 2). In Koshu shoot xylems, the profiles of endophytic bacterial microbiota have been comparable at every shoot development stage no matter the winery. Gammaproteobacteria (73–89%) was predominant in Koshu shoot xylems on the shoot elongation stage, whereas Oxyphotobacteria (48–63%) and Alphaproteobacteria (19–37%) have been predominant at véraison. On the shoot elongation stage, Pinot Noir cultivated in Komoro confirmed completely different variety of endophytic bacterial microbiota from Pinot Noir cultivated within the different vineyards. At véraison, the profiles of endophytic bacterial microbiota in Pinot Noir shoot xylems have been comparable no matter the winery. Gammaproteobacteria (76–98%) was predominant in Pinot Noir shoot xylems on the shoot elongation stage, whereas Oxyphotobacteria (56–81%) was predominant at véraison. In distinction to Koshu and Pinot Noir, the profiles of endophytic bacterial microbiota in Chardonnay and Cabernet Sauvignon shoot xylems confirmed variety and complexity amongst vineyards. On the shoot elongation stage, Oxyphotobacteria was predominant in Chardonnay shoot xylems at Minamisanriku (70%) and Kofu (85%), whereas Gammaproteobacteria was predominant within the different vineyards. At véraison, greater than 95% of endophytic micro organism in shoot xylems of Chardonnay cultivated in Minamisanriku and Omishima belonged to class Gammaproteobacteria. Within the case of Cabernet Sauvignon, though Oxyphotobacteria and Gammaproteobacteria have been predominant in shoot xylems at each shoot elongation stage and véraison, their proportions drastically diverse amongst vineyards.

Determine 2
figure 2

Endophytic bacterial microbiota in shoot xylems of cultivars grown within the completely different vineyards. Endophytic bacterial microbiota within the shoot xylems of every cultivar collected from completely different vineyards have been recognized and evaluated on the class degree. Information are offered as relative abundance (%). KO Koshu, CH Chardonnay, CS Cabernet Sauvignon, PN Pinot Noir, SES shoot elongation stage, V véraison, UR Urausu, MS Minamisanriku, KF Kofu, KA Kai, KN Katsunuma, KM Komoro, UE Ueda, SH Shobara, IZ Izumo, SA Saijo, OM Omishima.

Comparability of endophytic bacterial microbiota in grapevine shoot xylems between shoot elongation stage and véraison

The profiles of endophytic bacterial microbiota within the shoot xylems, whatever the cultivar, at every shoot development stage have been evaluated (Fig. 3). The profiles of endophytic bacterial microbiota in grapevine shoot xylems on the shoot elongation stage have been various and sophisticated. Though Oxyphotobacteria and Gammaproteobacteria have been predominant within the shoot xylems on the shoot elongation stage, numerous endophytic micro organism together with these belonging to courses Actinobacteria, Bacteroidia, Bacilli, Clostridia, and Alphaproteobacteria existed within the shoot xylems as nicely. In distinction, the profiles of endophytic bacterial microbiota in grapevine shoot xylems at véraison confirmed far much less variation than these on the shoot elongation stage. Oxyphotobacteria, Alphaproteobacteria, and Gammaproteobacteria accounted for greater than 95% of endophytic micro organism within the shoot xylems at véraison.

Determine 3
figure 3

Endophytic bacterial microbiota in grapevine shoot xylems at shoot elongation stage and véraison. Endophytic bacterial microbiota within the shoot xylems collected on the shoot elongation stage and véraison have been recognized and evaluated on the class degree. Information are offered as relative abundance (%). UR Urausu, MS Minamisanriku, KF Kofu, KA Kai, KN Katsunuma, KM Komoro, UE Ueda, SH Shobara, IZ Izumo, SA Saijo, OM Omishima, KO Koshu, CH Chardonnay, CS Cabernet Sauvignon, PN Pinot Noir.

Alpha variety of endophytic bacterial microbiota in grapevine shoot xylems

OTUs, Chao1 index, and Shannon index have been used as indexes of alpha variety of endophytic bacterial microbiota amongst cultivars, shoot development levels, and vineyards (Fig. 4). The medians of OTUs have been comparable among the many 4 cultivars (60.5 for Koshu and Pinot Noir, and 62.5 for Chardonnay and Cabernet Sauvignon). The medians of the Chao1 index have been additionally comparable among the many 4 cultivars (60 for Koshu and Pinot Noir, 63 for Chardonnay, and 65 for Cabernet Sauvignon). The median of the Shannon index (2.8) was highest for Koshu, whereas these for Pinot Noir, Chardonnay, and Cabernet Sauvignon have been comparable (2.0, 1.9, and a pair of.1, respectively). These outcomes counsel that Koshu shoot xylems had a better variety of endophytic bacterial microbiota than Pinot Noir, Chardonnay, and Cabernet Sauvignon shoot xylems.

Determine 4
figure 4

Alpha variety of endophytic bacterial microbiota in grapevine shoot xylems. Alpha variety analyses of cultivars, shoot development levels, and vineyards have been carried out. Higher panels, OTUs; center panels, Chao1 index; decrease panels, Shannon index. Cross (×) signifies the typical for every pattern. KO Koshu, CH Chardonnay, CS Cabernet Sauvignon, PN Pinot Noir, SES shoot elongation stage, V véraison, UR Urausu, MS Minamisanriku, KF Kofu, KA Kai, KN Katsunuma, KM Komoro, UE Ueda, SH Shobara, IZ Izumo, SA Saijo, OM Omishima.

The medians of OTUs and Chao1 index on the shoot elongation stage have been corresponding to these at véraison. The median of the Shannon index on the shoot elongation stage (3.0) was greater than that at véraison (1.7), indicating that grapevine shoot xylems on the shoot elongation stage had a better variety of endophytic bacterial microbiota than these at véraison.

The medians of OTUs and Chao1 index have been the best for Ueda (74.5 and 75, respectively), whereas these have been the bottom for Komoro (49.5 and 50, respectively). The medians of the Shannon index have been lowest and highest for Minamisanriku (1.2) and Ueda (3.9), respectively. These outcomes counsel that a lot of endophytic bacterial species existed within the shoot xylems of grapevine cultivated in Ueda, and that Ueda had the best variety of endophytic bacterial microbiota among the many vineyards examined.

Beta variety of endophytic bacterial microbiota in grapevine shoot xylems

PCoA demonstrated that the plots of Koshu and Pinot Noir have been comparatively shut to one another on the shoot elongation stage and really shut to one another at véraison no matter the winery (Fig. 5), suggesting that the profiles of endophytic bacterial microbiota in Koshu and Pinot Noir shoot xylems have been comparable no matter each shoot development stage and winery. Though the plots of Chardonnay and Cabernet Sauvignon in every winery have been broadly scattered on the shoot elongation stage, they have been very shut to one another at véraison. These outcomes counsel that the profiles of endophytic bacterial microbiota in grapevine shoot xylems at véraison have been uniform no matter the winery.

Determine 5
figure 5

Principal coordinate evaluation of endophytic bacterial microbiota in grapevine shoot xylems. Circles () and squares (□) point out endophytic bacterial microbiota on the shoot elongation stage and véraison, respectively. KO Koshu, CH Chardonnay, CS Cabernet Sauvignon, PN Pinot Noir.

PERMANOVA demonstrated that the p-values for all mixtures of cultivars exceeded 0.05 (Supplementary Desk 4). In distinction, there was a big distinction (p = 0.001) between the shoot elongation stage and véraison. Though three of fifty-five mixtures of vineyards confirmed important variations (p = 0.04 for Komoro and Izumo, p = 0.007 for Komoro and Kai, and p = 0.034 for Kai and Kofu), there was no important distinction between a lot of the mixtures. These outcomes counsel that the variations of endophytic bacterial microbiota in grapevine shoot xylems vastly trusted the shoot development stage.

Cluster evaluation of endophytic bacterial microbiota in grapevine shoot xylems

Cluster evaluation of endophytic bacterial microbiota in grapevine shoot xylems in numerous cultivars, shoot development levels, and vineyards was carried out by MDS (Figs. 6 and seven). Cladistic evaluation was additionally performed utilizing a bunch common methodology. Aside from Kai and Komoro, 9 vineyards have been very shut to one another within the place map and eight vineyards fashioned a cluster within the cladogram (Fig. 6A). The 4 cultivars within the vineyards examined have been broadly scattered within the place map (Fig. 6B). Then again, Koshu and Pinot Noir on the shoot elongation stage, cultivated in Kofu, have been shut to one another within the place map and fashioned a cluster within the cladogram (Fig. 7A). Chardonnay and Cabernet Sauvignon on the shoot elongation stage, cultivated in Kofu, have been shut to one another however aside from Koshu and Pinot Noir, and fashioned a cluster within the cladogram. Curiously, at véraison, the 4 cultivars have been very shut to one another within the place map (Fig. 7B).

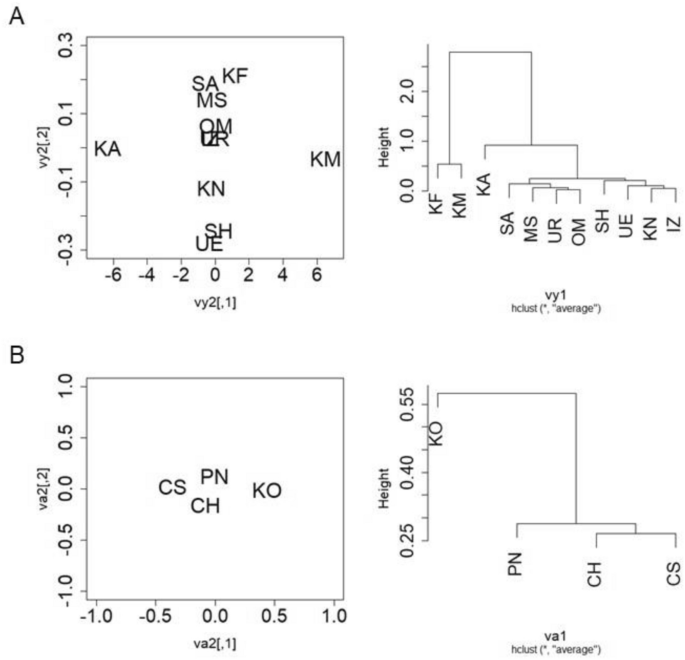

Determine 6
figure 6

Multidimensional scaling evaluation of endophytic bacterial microbiota in grapevine shoot xylems amongst vineyards or cultivars. (A) Vineyards. (B) Cultivars. Left, place map. Proper, cladogram. UR Urausu, MS Minamisanriku, KF Kofu, KA Kai, KN Katsunuma, KM Komoro, UE Ueda, SH Shobara, IZ Izumo, SA Saijo, OM Omishima, KO Koshu, CH Chardonnay, CS Cabernet Sauvignon, PN Pinot Noir.

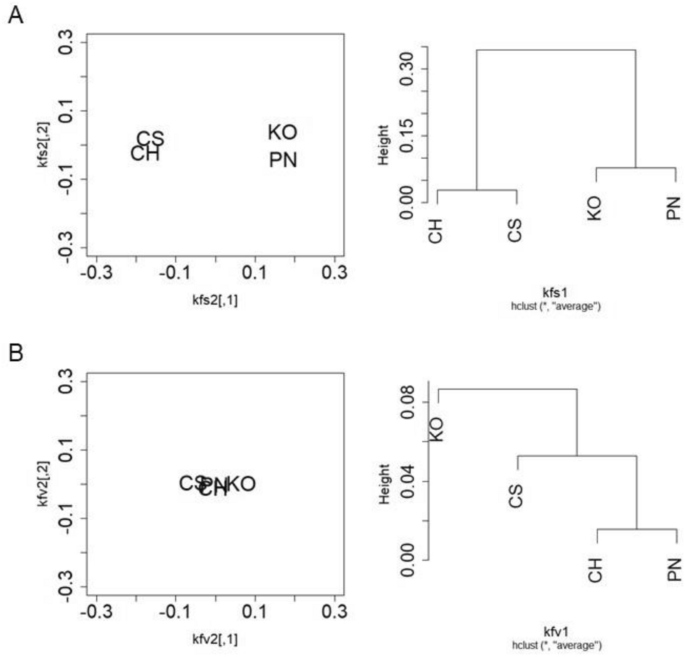

Determine 7
figure 7

Multidimensional scaling evaluation of endophytic bacterial microbiota in grapevine shoot xylems amongst cultivars grown in Kofu winery. (A) Shoot elongation stage. (B) Véraison. Left, place map. Proper, cladogram. KO Koshu, CH Chardonnay, CS Cabernet Sauvignon, PN Pinot Noir.

Subsequent, MDS and cladistic evaluation of every cultivar within the vineyards have been carried out (Fig. 8). The distances amongst vineyards cultivating Koshu have been small no matter the shoot development stage (Fig. 8A). The distances amongst vineyards cultivating Pinot Noir have been additionally small on the shoot elongation stage, and have been additional decreased at véraison (Fig. 8B). In distinction, the distances amongst vineyards cultivating Chardonnay and Cabernet Sauvignon have been massive on the shoot elongation stage (Fig. 8C,D). Though the distances amongst some vineyards (Urausu, Kofu, Kai, Izumo, and Shobara for Chardonnay, and Ueda, Kofu, Katsunuma, Komoro, and Shobara for Cabernet Sauvignon) decreased at véraison, they have been massive in contrast with Koshu and Pinot Noir.

Determine 8
figure 8

Multidimensional scaling evaluation of endophytic bacterial microbiota in grapevine shoot xylems amongst vineyards cultivating every cultivar. (A) Koshu. (B) Pinot Noir. (C) Chardonnay. (D) Cabernet Sauvignon. Left, place map. Proper, cladogram. UR Urausu, MS Minamisanriku, KF Kofu, KA Kai, KN Katsunuma, KM Komoro, UE Ueda, SH Shobara, IZ Izumo, SA Saijo, OM Omishima.
