Saturday, October 1, 2022
HomeChemistryPressure-regulated Gibbs free power permits reversible redox chemistry of chalcogenides for sodium...

Pressure-regulated Gibbs free power permits reversible redox chemistry of chalcogenides for sodium ion batteries


Theoretical predictions for the pressure impact on the exercise of Mo

The feasibility of a pressure engineering technique that impacts the reversibility of the sodium storage mechanism of MoSe2 is assessed first by DFT calculations. It’s price mentioning that in our research, 2-MI was chosen to exert the pressure on the studied objects (Mo and MoSe2) via its sturdy ligand impact26, which will be additional confirmed by its destructive adsorption energies with Mo and MoSe2, respectively (Fig. 1c and Supplementary Fig. 1). The atomic construction mannequin of TS-Mo was constructed by introducing 2-MI species into Mo crystal construction (right here, the 2-MI is gotten smaller to make the underlying Mo construction extra seen), which exerts the pressure on Mo by way of the interplay between Mo and N atoms (Fig. 1d). It has been nicely addressed that the sturdy adsorption of the ligand will induce tensile pressure on the adsorption websites27,28, which considerably deform the construction to some extent and thereby would possibly change the floor power. Subsequently, we first calculated the ΔG worth of the studied response and the outcomes clearly present that the response of TS-Mo and Na2Se to generate MoSe2 (TS-Mo + 2Na2Se → MoSe2 + 4Na+ + 4e) delivers a ΔG worth of three.06 eV (Fig. 1e, Supplementary Fig. 2, and Supplementary Desk 1), which is way smaller than that (3.95 eV) of the identical reversible response based mostly on unstrained Mo. Moreover, for unstrained Mo, this ΔG worth akin to the reversible response is increased than that of the irreversible response (Mo + Na2Se → Mo + Se + 2Na+ + 2e) (Supplementary Fig. 3), indicating that the irreversible response might happen preferentially than the reversible one for unstrained Mo. In keeping with the Marcus equation in Fig. 1a, the smaller ΔG values additionally imply a diminished response power barrier, implying that pressure engineering might evidently promote the response not solely in thermodynamics but in addition in kinetics. Moreover, TS-Mo additionally displays an enlarged Mo-Mo bond size after using the tensile pressure (Fig. 1d), owing to the electronegativity distinction between Mo and N atoms. The elevated distance weakens the atomic interplay between Mo atoms, which is conductive to enhance its reactivity. Subsequently, the digital construction of TS-Mo was additionally evaluated by partially density of states (PDOS), as proven in Fig. 1f. Clearly, TS-Mo reveals an upshift of the d-band heart towards the Fermi Degree in comparison with unstrained Mo. Consequently, TS-Mo achieves a extra destructive adsorption power worth (−6.58 eV) than unstrained Mo (−4.77 eV) when interacting with Na2Se, additional offering a optimistic impact on the response between Mo and Na2Se, which will be additional confirmed by an enlarged Na-Se distance (dNa-Se) of Na2Se adsorbed on TS-Mo (Fig. 1g and Supplementary Fig. 4). Taken collectively, it may be inferred that the pressure engineering might present nice potential in selling the electrochemical response of Mo and Na2Se in power storage gadgets. In our research, Mo is the discharged product of MoSe2, and subsequently, to be able to acquire TS-Mo experimentally, we will solely begin from the MoSe2 and likewise count on that TS-MoSe2 can move on its pressure to Mo through the discharging course of, thus probably resulting in the formation of TS-Mo.

Supplies synthesis and characterizations

Based mostly on the above theoretical calculations, we then ready TS-MoSe2 by selenizing a Mo-precursor containing Mo supply and 2-MI (Supplementary Fig. 5). Electron microscopy pictures clearly present that the resultant pattern is featured with a hole spherical construction with a median diameter of 150 nm (Fig. 2a and Supplementary Fig. 6), which inherits the spherical form of the Mo-precursor (Supplementary Fig. 5d). The formation of the hole construction follows the Kirkendall impact monitored by the time-dependent experiments (Supplementary Fig. 7). The precise floor space of the hole TS-MoSe2 was decided to be 17.68 m2 g−1 in accordance with the Brunauer–Emmett–Teller methodology, which is barely increased than that of the unstrained MoSe2 (Supplementary Fig. 8). Moreover, additional high-resolution transmission electron microscopy (HR-TEM) pictures show the everyday options of few-layered MoSe2 and the interlayer spacing is roughly 0.66 nm (Fig. 2b, c), barely bigger than the intrinsic (002) airplane worth11,29. Moreover, the energy-dispersive spectroscopy (EDS) elemental mappings and line-scan profiles reveal that apart from the Mo and Se components which can be uniformly distributed all through the construction (Fig. 2nd and Supplementary Fig. 9), N and C components had been additionally detected and that this pattern additionally reveals extra mass loss (Supplementary Fig. 10). All of those outcomes not directly point out that there could also be some 2-MI species in MoSe2. To additional verify this deduction, Fourier-transform infrared spectroscopy (FT-IR) was performed. As proven in Supplementary Fig. 11, the bands at 1660, 1519, 1186, and 1030 cm−1 are attributed to the stretching vibration of N-H, the skeleton vibration of the imidazole ring, and the stretching vibrations of C-N and C=C bonds, respectively, whereas the band at 837 cm−1 is assigned to the vibration of C-H, proving the existence of the 2-MI species30. And the content material of the 2-MI was decided to be about 4.10 wt% by CHN elemental evaluation (Supplementary Desk 2). In addition to, X-ray photoelectron spectroscopy (XPS) measurements had been carried out to additional research its current kind in MoSe2 (Supplementary Fig. 12). As proven in Supplementary Fig. 12a, the survey XPS spectrum additionally reveals the presence of the C and N components in good settlement with the earlier EDS outcomes. The high-resolution N 1 s XPS spectrum (Supplementary Fig. 12b) reveals the presence of pyridinic-N (397.6 eV), pyrrolic-N (399.7 eV), and graphitic-N (401.5 eV) and the height at 397.6 eV will be assigned to N-Mo bond31, suggesting the formation of coordination bond between 2-MI and MoSe2. This interplay might result in the tensile pressure between the MoSe2 layers, thus inflicting an expanded (002) interlayer spacing (Fig. 2c).

Fig. 2: Supplies synthesis and characterizations.
figure 2

a TEM, b, c HR-TEM pictures, and d elemental mapping pictures of TS-MoSe2. e XRD patterns, f Raman spectra, and g The normalized Mo Okay-edge EXAFS spectra (circle) of TS-MoSe2 and MoSe2 in addition to the corresponding EXAFS becoming curves (line). h Wavelet rework (WT) contour plots of MoSe2, TS-MoSe2, and MoN. i FT-IR spectra of 2-MI and the totally discharged and charged merchandise of TS-MoSe2. j The normalized Mo Okay-edge EXAFS spectra of MoN and the totally discharged product of TS-MoSe2 (TS-MoSe2-D0.01) and MoSe2 (MoSe2-D0.01).

To achieve additional info on the tensile pressure within the as-prepared TS-MoSe2, a sequence of characterization strategies had been used, similar to X-ray diffraction (XRD), Raman spectrum, Fourier-transformed prolonged X-ray absorption high quality construction (EXAFS) and XPS. As proven in Fig. 2e, the XRD sample of TS-MoSe2 is nicely in line with the usual card of MoSe2 (JCPDS card No. 29-0914) with out every other crystalline impurities. Nonetheless, in comparison with bulk MoSe2, it’s price noting that the (002) diffraction peak (c-axis) of the as-prepared pattern strikes to a decrease angle whereas the (100) peak shifts to the next angle, indicating that there’s a lattice growth alongside the (002) route and in-plane compression in TS-MoSe232. Extra importantly, the quantitative perception of the pressure will be obtained by the XRD sample in accordance with the next Eq. (5)33:

$${{{{{{mathrm{pressure}}}}}}}{%}=frac{{d}({{{{{{mathrm{TS}}}}}}}{-}{{{{{{mathrm{MoS}}}}}}}{{e}}_{{2}})-{d}{(}{{{{{{mathrm{MoS}}}}}}}{{{{{{{mathrm{e}}}}}}}}_{{2}}{)}}{{d}{(}{{{{{{mathrm{MoS}}}}}}}{{{{{{{mathrm{e}}}}}}}}_{{2}}{)}}occasions 100%$$


the place d represents the spacing of the corresponding planes, which will be deduced by the Bragg equation. Consequently, TS-MoSe2 reveals a tensile pressure of about 6.34% alongside the c-axis and thereby an in-plane compressive pressure of three.15%. Moreover, the distinct pink shifts of E12 g, A1g, and B12 g in Raman spectrum of TS-MoSe2 additionally recommend the existence of the pressure (Fig. 2f), because the tensile pressure results in an expanded interlayer spacing, which may weaken the interlayer interplay pressure and in flip lower the frequencies of E12 g, A1g, and B12 g vibration modes32,34. EXAFS spectroscopy in Fig. 2g shows the bond size evolution in TS-MoSe2 and the shortened Mo-Se bond is clearly noticed, which ends up from the in-plane compressive pressure35. In addition to, the curve becoming in opposition to the Fourier transforms of the EXAFS information for TS-MoSe2 (Supplementary Fig. 13 and Supplementary Desk 3) additional proves the coordination bond of Mo and N and the corresponding coordination quantity is 0.8. Moreover, the wavelet rework (WT) plot of the Mo Okay-edge EXAFS for TS-MoSe2 additionally presents a peak at 1.5 Å (Fig. 2h), which will be attributed to the dominance of the Mo-N scattering36. In the meantime, the binding energies of Mo 3d5/2 and Mo 3d3/2 within the high-resolution Mo 3d XPS spectrum of TS-MoSe2 each shift to a low-energy aspect, suggesting that the pressure might result in the formation of 1T-MoSe2 (Supplementary Fig. 14)37. The above outcomes point out that the as-prepared TS-MoSe2 does exist the out-plane tensile pressure and in-plane compressive pressure. As well as, we additionally studied discharged and charged TS-MoSe2 by FT-IR (Fig. 2i) and located that the 2-MI species nonetheless exists, in line with the end result from Supplementary Fig. 11. Moreover, the soundness of the 2-MI molecule was additional confirmed by linear sweep voltammetry (LSV) curves, by which no seen discount peak ascribed to the 2-MI molecule is noticed throughout the working voltage window (Supplementary Fig. 15). Undoubtedly, the 2-MI species will proceed to coordinate with the discharged product of TS-MoSe2 (i.e., Mo), as confirmed by the Mo-N bond within the EXAFS and XPS spectra (Fig. 2j and Supplementary Fig. 16). It’s noticeable that the coordination impact might allow Mo additionally with the tensile pressure, that’s, the pressure in TS-MoSe2 has been transferred to its discharged product. As depicted in Fig. 2j, TS-MoSe2-D0.01 shows a peak at ~2.69 Å, akin to the Mo-Mo bond in metallic Mo, which is barely longer than that of the counterpart of unstrained MoSe2, implying the existence of the tensile pressure in metallic Mo induced by the coordination between 2-MI and Mo.

Investigation of reversible sodium storage mechanism in TS-MoSe2

Impressed by the optimistic affect that pressure engineering has achieved on the redox response by the DFT calculations, we first carried out ex situ XPS measurements to analyze the impact of the tensile pressure on the sodium storage course of. Throughout the entire evolution strategy of discharging and charging, ten voltages had been chosen to judge the structural transformation of the TS-MoSe2 electrode. As proven within the Mo 3d XPS spectra (Fig. 3a), at the start of the discharging course of (1.8 and 1.5 V), two principal attribute peaks at 228.83 and 231.93 eV which can be associated to threed5/2 and threed3/2 of Mo4+ in MoSe2 barely shift in direction of the low binding power, indicating the formation of the NaxMoSe2 intermediate. With additional discharging (1.0 and 0.4 V), a element with decrease binding energies at 227.43 (Mo 3d5/2) and 230.53 eV (Mo 3d3/2) seems and it may be assigned to metallic Mo38, suggesting that the NaxMoSe2 has partly remodeled into metallic Mo. At a totally discharged state, the NaxMoSe2 fully disappears and solely metallic Mo is detected. Correspondingly, the Se 3d peak at 54.5 eV first shifts to increased binding power, after which restores to the unique place, manifesting that Na2Se lastly kinds by way of the polyselenide Na2(Se)1+n (n > 1) through the discharging course of (Fig. 3c)39. Afterward, within the following charging course of, the peaks of each Mo 3d and Se 3d core ranges will be totally recovered to their pristine state for TS-MoSe2, and in distinction, for unstrained MoSe2, metallic Mo is all the time current, and in the meantime, the basic Se is finally generated (Supplementary Figs. 17a, 18a). These modifications will be noticed extra visually in corresponding 2D mapping pictures of the Mo 3d and Se 3d XPS spectra (Fig. 3b and Supplementary Figs. 17b, 18b, 19), which exhibit that the pressure engineering permits TS-MoSe2 to comply with extremely reversible sodium storage mechanism within the discharging and charging processes.

Fig. 3: Research on discharging and charging processes based mostly on ex situ XPS and in situ Raman spectra.
figure 3

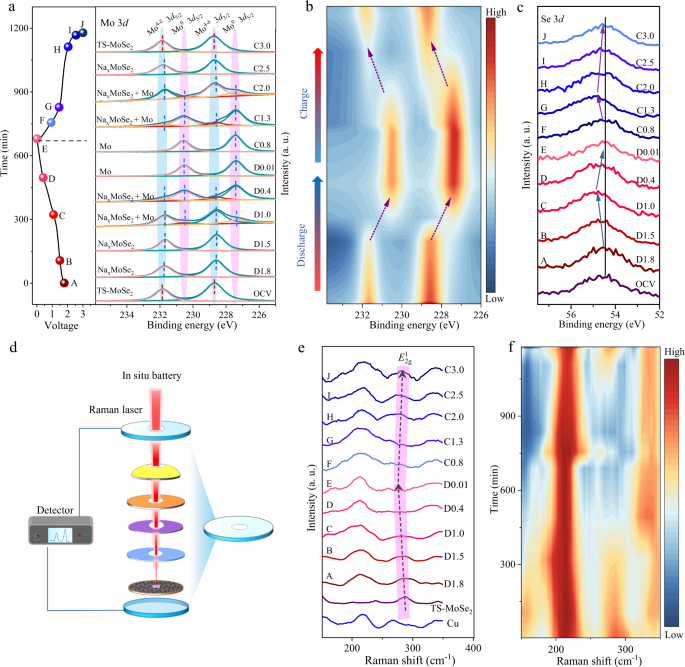

ac ex situ Mo 3d XPS spectra (a) and corresponding mapping picture(b), in addition to Se 3d XPS spectra (c) of TS-MoSe2 through the preliminary discharging and charging processes. d Schematic illustration of in situ Raman measurement. e, f In situ Raman spectra (e) and corresponding mapping picture (f) of TS-MoSe2 through the preliminary discharging and charging processes.

The reversible sodium storage of TS-MoSe2 was additional confirmed by in situ Raman (Fig. 3d). As proven in Fig. 3e, TS-MoSe2 displays a distinguished peak at about 285 cm−1, akin to the E12 g vibration mode of MoSe2, and the peaks at 216 and 342 cm−1 belong to the Cu foil-derived oxide40. Through the discharging course of, the E12 g peak of MoSe2 reveals a slight pink shift together with a lower of peak depth, which can come from the lattice growth and dysfunction improve of TS-MoSe2 induced by the intercalation of sodium ions. Because the discharging course of proceeds, the height at 285 cm−1 disappears fully, indicating that MoSe2 is totally diminished. Reversibly, within the subsequent charging course of, it’s noticed that the E12 g peak of MoSe2 is recovered once more, indicating the regeneration of MoSe2. The phenomenon can also be proved by the height coloration change within the mapping picture in Fig. 3f. Moreover, to exclude the affect of testing errors, we repeated the in situ Raman testing and the experimental outcomes are principally constant (Supplementary Fig. 20).

To additional confirm the above outcomes, ex situ Mo Okay-edge X-ray adsorption spectroscopy (XAS) of TS-MoSe2 was carried out to trace its valence state change and native atomic construction evolution through the electrochemical biking. As depicted in Fig. 4a and Supplementary Fig. 21, through the discharging course of, the absorption fringe of Mo Okay-edge X-ray absorption near-edge construction (XANES) steadily shifts to a decrease power route together with the insertion of sodium ions, manifesting that the valence state of Mo steadily decreases, specifically, the discount of MoSe2 to Mo. After that, the absorption edge returns to the upper power state till it virtually coincides with the absorption fringe of the pristine TS-MoSe2 within the charging state (Fig. 4b and Supplementary Fig. 22). As well as, the corresponding wiggle/oscillatory options of the post-edge area of the pristine TS-MoSe2, totally discharged TS-MoSe2 (D0.01), totally charged TS-MoSe2 (C3.0), and Mo foil also can mirror the variation within the native construction of TS-MoSe2 through the electrochemical course of. (Fig. 4c). Upon being totally discharged to 0.01 V, the looks of the fingerprint characteristic of Mo foil at 20013.2, 20040.3, and 20084.1 eV helps the formation of metallic Mo16. In distinction, after the total charging, the aforesaid peaks virtually recuperate to the unique state of TS-MoSe2, whereas the Mo foil-related options disappear, indicating that the discharging and charging processes of TS-MoSe2 through the preliminary cycle are almost totally reversible. It needs to be famous that the Mo Okay-edge XANES spectra of shaped metallic Mo and the regenerated MoSe2 are barely completely different from these of corresponding Mo foil and pristine TS-MoSe2, which can be attributable to the ligand impact of imidazole and amorphous nature, respectively41,42. The same change development can also be noticed within the Se Okay-edge XANES (Supplementary Figs. 23, 24a–d). Particularly, through the preliminary discharging course of, there are two apparent peaks positioned at 12661.08 and 12668.2 eV within the XANES spectra of TS-MoSe2, which will be assigned to MoSe243. However, these two peaks disappear and a peak seems at 12666.5 V upon discharging to 0.01 V, which corresponds to the technology of the discharged product Na2Se. Through the subsequent charging course of, these peaks return to the unique state, additional indicating that the conversion response reveals good reversibility.

Fig. 4: Research on discharging and charging processes based mostly on ex situ XAS.
figure 4

Ex situ Mo Okay-edge XANES spectra of TS-MoSe2 through the first a discharged and b charged states. c Mo Okay-edge XANES spectra of pristine TS-MoSe2, totally discharged TS-MoSe2 (D0.01), totally charged TS-MoSe2 (C3.0), and Mo foil. d Evolution of Mo Okay-edge EXAFS throughout electrochemical biking. e The depth evolution of the Mo-Se peak in TS-MoSe2 (2.11 Å, representing the focus of TS-MoSe2) and the Mo-Mo peak in metallic Mo (2.69 Å, representing the focus of Mo) throughout electrochemical biking. Mo Okay-edge XANES and EXAFS spectra of TS-MoSe2 f and MoSe2 g after the primary, second, and fifth cycles.

Moreover, the EXAFS spectra had been utilized to disclose the native structural modifications of TS-MoSe2 through the preliminary discharging and charging processes. As proven in Fig. 4d, the Mo Okay-edge EXAFS spectra of the pristine TS-MoSe2 exhibit two apparent peaks at 2.11 and three.09 Å, akin to Mo-Se interplay within the first coordination shell and Mo–Mo interplay, respectively44,45. With the intercalation of sodium ions, a peak seems at 2.69 Å accompanied by a rise of peak depth, akin to the Mo–Mo bond in metallic Mo, which additional confirms the technology of Mo through the discharging course of6. The focus modifications of the TS-MoSe2 and its discharged product Mo will be monitored by monitoring the depth modifications of the corresponding peaks (Fig. 4e)46. Clearly, through the discharging course of, the Mo-Se peak that belongs to TS-MoSe2 steadily decreases in depth, whereas the Mo-Mo peak (metallic Mo) continues to extend. Equally, the corresponding Se Okay-edge EXAFS spectra (Supplementary Fig. 24e) additionally witnessed the gradual transformation of the Se-Mo bond (MoSe2) to the Se-Na bond (Na2Se) upon discharging. Within the subsequent charging course of, the Mo-Mo (metallic Mo) and Se-Na peaks steadily disappear, whereas Mo-Se/Se-Mo and Se-Se (TS-MoSe2) peaks turn into stronger. These observations additional show the wonderful electrochemical reversibility of TS-MoSe2. As well as, the Mo and Se Okay-edge XANES and EXAFS spectra of TS-MoSe2 at D0.01 and C3.0 through the second and fifth cycles had been additionally recorded, additional confirming the reversible conversion of TS-MoSe2 within the subsequent cycles (Fig. 4f and Supplementary Figs. 25–27). The entire sodium storage strategy of TS-MoSe2 is illustrated in Supplementary Fig. 28, which fits by way of an intercalation and conversion response through the charging course of after which the generated Mo and Na2Se are reversibly transformed into MoSe2. In contrast, the unstrained MoSe2 displays a special conversion mechanism in contrast with the TS-MoSe2, as disclosed by its Mo Okay-edge XANES and EXAFS spectra. As proven in Fig. 4g and Supplementary Fig. 29, after charging at C3.0, the corresponding Mo-Mo (metallic Mo) peak at 20013.2 eV all the time exists, indicating that resultant metallic Mo didn’t take part within the subsequent response. In different phrases, the discharged product (metallic Mo) of MoSe2 can not regenerate MoSe2 once more within the charging course of, and its sodium storage mechanism is irreversible. Subsequently, combining ex situ XPS and XAS with in situ Raman spectra, it may be concluded that the sturdy interplay between the ligand and metallic floor induces floor pressure and subsequent floor reconstruction47,48, which performs a major position within the activation of Mo and thereby promotes the reversible sodium storage of MoSe2, that’s, TS-MoSe2 displays a reversible sodium storage mechanism following Eq. (1), whereas unstrained MoSe2 is irreversible as proven in Eq. (2).

Electrochemical efficiency

Basically, the reversible construction evolution will contribute to the development of battery efficiency. Thus, the electrochemical performances of TS-MoSe2 and MoSe2 because the anodes for SIBs had been evaluated. Determine 5a reveals cyclic voltammogram (CV) profiles of TS-MoSe2 for the primary 4 cycles inside a possible vary (V vs. Na/Na+) of 0.01−3.0 V. The primary cathodic scan presents two pronounced peaks at round 1.32 and 0.56 V, respectively, that are attributed to the intercalation of Na+ into the MoSe2 and the conversion response to kind Na2Se and metallic Mo nanograins. In the meantime, the broad discount peak starting from 0.01 to 0.5 V within the first cycle is said to the electrolyte decomposition together with the formation of stable electrolyte interface (SEI) movie49,50. Throughout the next anodic scan, the distinct peak at 1.75 V, accompanied by a shoulder at 2.15 V, is ascribed to the conversion response between Mo and Na2Se to kind MoSe2. These CV profiles overlap very nicely after the preliminary cycle, indicating the admirable reversibility and cyclic stability through the biking course of. In contrast, MoSe2 (Supplementary Fig. 30) reveals completely different peak positions in its CV curve of the primary cathodic sweep. The absence of the height positioned at 1.32 V means that the intercalation response hardly happens within the preliminary cathodic course of, which could possibly be attributed to its comparatively small interlayer distance and bigger diffusion power barrier51. Determine 5b reveals their capability vs. voltage (dQ/dV vs. V) plots at completely different chosen cycles, the place the redox peaks of TS-MoSe2 akin to the reversible intercalation and conversion response hardly change in depth even after 100 cycles. Nonetheless, in sharp distinction, the redox peaks of the unstrained MoSe2 electrode virtually disappear after 100 cycles, which can ascribe to the lack of energetic supplies owing to the shuttling of polyselenides52. Moreover, the consultant galvanostatic cost and discharge voltage curves of the TS-MoSe2 and MoSe2 anode in Supplementary Fig. 31 agree nicely with the above CV and dQ/dV outcomes. Determine 5c and Supplementary Fig. 32 present the biking efficiency of TS-MoSe2 on the present density of 0.1 A g−1. TS-MoSe2 nonetheless maintains a particular capability of 610 mA h g−1 and an areal capability of 0.36 mA h cm−2 after 100 cycles, a lot increased than that of the MoSe2 counterpart (350 mA h g−1, 0.09 mA h cm−2), and that its Coulombic efficiencies are close to 100% over 100 cycles, additional implying the great biking stability. TS-MoSe2 additionally displays glorious fee efficiency. As proven in Fig. 5d, TS-MoSe2 delivers reversible discharge capacities of 652, 604, 562, 533, 502, 460, and 408 mA h g−1 at present densities of 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, and 5.0 A g−1, respectively. Notably, when the present fee is switched again to 0.05 A g−1, the particular capability recovers to about 665 mA h g−1. The cycle and fee performances are superior to these of many of the reported MoSe2-based nanomaterials (Fig. 5e). Moreover, we additionally examined the biking stability and fee efficiency of the TS-MoSe2 electrode with elevated loadings of the energetic supplies. As proven in Supplementary Fig. 33, solely a slight capability discount is noticed. In addition to, even with comparatively excessive mass ratios of the energetic supplies (the mass ratios of the energetic supplies: carbon: binder are 7:2:1 and eight:1:1, respectively), TS-MoSe2 nonetheless displays good biking and fee efficiency. In the meantime, Fig. 5f displays the speed efficiency of TS-MoSe2 within the temperature vary of fifty to −30 °C was additionally examined. Surprisingly, TS-MoSe2 shows admirable adaptability to the temperature. When the temperature is as little as −30 °C, TS-MoSe2 nonetheless stays a reversible capability as excessive as 380 mA h g−1 at 0.1 A g−1 after 100 cycles (Fig. 5g). In sharp distinction, the reversible capability of MoSe2 at −30 °C is barely 128 mA h g−1 after 100 cycles. In view of the superior sodium storage efficiency of TS-MoSe2 within the half cells, the Na-ion full cells had been additional assembled with do-it-yourself Na3V2(PO4)2O2F (NVPOF) as a cathode to preliminarily assess its practicability as an anode for SIBs (Supplementary Figs. 34, 35). As proven in Supplementary Fig. 35b, c, the total cells exhibit good biking efficiency and the capability can nonetheless keep 434.9 mA h g−1 after 200 cycles at 0.2 A g−1 (based mostly on the mass of the anode). The complete cells additionally current superior fee capabilities (Supplementary Fig. 35d), by which about 70.2% of the capability will be retained even when the present density will increase by 50-folds from 0.1 to five A g−1. The nice fee capabilities endow the total cells with a particular power of 108.6 Wh kg−1 at an influence density of 19.0 W kg−1, and even 74.1 Wh kg−1 at an influence density of 648.5 W kg−1 (based mostly on the full mass of the electrode supplies), that are comparable or superior to these of many reported full cells (Supplementary Fig. 35e).

Fig. 5: Electrochemical efficiency.
figure 5

a CV curves of TS-MoSe2 between 0.01 and three.0 V at a possible sweep pace of 0.1 mV s−1. b dQ/dV plots of TS-MoSe2 and MoSe2. c Biking and d fee performances of TS-MoSe2 and MoSe2. e Comparability of the speed capacities of TS-MoSe2 with a sequence of reported MoSe2-based anodes. f Biking performances of TS-MoSe2 and MoSe2 at completely different temperatures from 50 to −30 °C. g Biking performances of TS-MoSe2 at −10, −30 °C and MoSe2 at −30 °C.

Electrochemical kinetics evaluation

To deeply perceive the wonderful response kinetics of TS-MoSe2 because the anode for SIBs, the temperature-dependent electrochemical impedance spectroscopy (EIS) spectra of TS-MoSe2 and MoSe2 had been investigated (Fig. 6a and Supplementary Fig. 36). The Nyquist plots exhibit a high-frequency semicircle and a low-frequency sloping line, which discuss with the cost switch resistance (Rct) on the electrolyte interface and the Na+ diffusion resistance within the electrode, respectively53. The fitted parameters of TS-MoSe2 and MoSe2 are proven in Supplementary Desk 4. Clearly, the Rct values of TS-MoSe2 are all the time decrease than these of its counterparts underneath all of the check temperatures, indicating that the tensile pressure contributes to accelerating the electron switch fee of TS-MoSe2. Then, we additional analyzed the diffusion within the low-frequency area by calculating the diffusion coefficient of Na+ (DNa) (the small print will be present in Supporting Data). The DNa is inversely proportional to the Warburg issue σ worth and the σ will be obtained by becoming the true half Z’ of the electrochemical impedance spectroscopy with ω−1/2. As proven in Fig. 6b and Supplementary Fig. 37, TS-MoSe2 displays a a lot smaller σ worth than MoSe2, suggesting its quicker Na+ diffusion fee. Furthermore, based mostly on the wonderful ion diffusion kinetics of TS-MoSe2, we additional calculated its obvious activation power (Ea) of sodium ion diffusion in accordance with Arrhenius equations54,55. As displayed in Fig. 6c, the Ea worth of TS-MoSe2 is set to be 36.99 kJ mol−1, which is smaller than that of MoSe2, manifesting that the tensile pressure might evidently decrease the response activation power and thus speed up the response kinetics56. In addition to, in accordance with the correlation of the part angle with the attribute frequency, the corresponding time fixed of the pattern was additionally studied utilizing the formulation τ0 = 1/f0, the place τ0 is the minimal time required to launch all of the power with an effectivity >50%. The smaller the worth of τ0, the extra conducive to speedy ion diffusion and transmission, and f0 is the attribute frequency when the part angle is −45°. As proven in Fig. 6d, the time fixed of TS-MoSe2 was calculated to be 2.9 s, which is considerably decrease than that of MoSe2 (10 s). The quick frequency response of TS-MoSe2 additional gives proof for its smaller cost switch resistance and higher Na+ diffusion/transportation dynamics57,58.

Fig. 6: Electrochemical kinetics evaluation.
figure 6

a EIS spectra of TS-MoSe2 at completely different temperatures after 5 cycles. The inset is an equal circuit used to simulate EIS spectra. b σ values at completely different temperatures calculated from EIS curves. c Arrhenius plots of ln (T/Rct) vs. 1/T in TS-MoSe2 and MoSe2 electrodes. d Bode plots of TS-MoSe2 and MoSe2 electrodes. e Tafel plots of TS-MoSe2 and MoSe2 electrodes through the anodic scan. f The sodium ion diffusion coefficient vs. De/Intercalation state of TS-MoSe2 and MoSe2 electrodes through the discharging/charging course of after 5 cycles. g The adsorption websites of sodium ions and the corresponding adsorption energies. h The diffusion pathway of sodium ions and the corresponding diffusion power barrier.

Moreover, Na+ diffusion kinetics was additionally evaluated by the linear relationship between the redox peak present (Ip) and the sweep pace (v1/2) based mostly on the CV curves at completely different scan charges (Supplementary Fig. 38). In keeping with the Randles–Sevcik formulation, the slope of the fitted Ip ~ v1/2 is proportional to the DNa (see particulars in Supporting Data). As introduced in Supplementary Fig. 39, the slopes of TS-MoSe2 on the oxidation peak and discount peak are 1.81 and –1.30, that are higher than these of MoSe2 (1.24/–0.92), in accordance with these obtained from EIS. Moreover, Tafel plots of TS-MoSe2 and MoSe2 had been used to additional research their response kinetics (Fig. 6e). Because the overpotential (η) approaches to zero, the plot deviates sharply from a linear conduct and will be extrapolated to an interception of log i0. Based mostly on the Butler Volmer mannequin, the usual fee fixed (okay0) of an electrochemical response is proportional to its alternate present (i0)59. Clearly, TS-MoSe2 shows the next i0 worth through the anodic scan in contrast with MoSe2, implying the quicker oxidative kinetics of the TS-MoSe2. The galvanostatic intermittent titration method (GITT) was additional carried out to entry the Na+ diffusion kinetics of TS-MoSe2 and MoSe2 upon biking (Fig. 6f and Supplementary Fig. 40)60. Clearly, the calculated DNa values of TS-MoSe2 are bigger than these of MoSe2 at many of the discharging/charging states, whereas in some areas, their DNa values virtually overlap. Based mostly on the foregoing analyses, TS-MoSe2 experiences the in-/de-tercalation and conversion reactions (typically, the previous has increased DNa as a consequence of weaker interlayer van der Waals forces3,61), whereas for MoSe2, Se/Na2Se turns into the only real redox couple after the preliminary biking that solely happens the conversion response (Se + 2Na+ + 2e ↔ Na2Se). Thus, the conversion strategy of the 2 circumstances entails comparable intermediate phases, thereby leading to virtually the identical DNa values.

To additional verify the affect of pressure engineering on the diffusion kinetics of sodium ions, DFT calculations had been carried out. Two typical adsorption websites had been thought-about in Fig. 6g: the highest of the Mo/Se atom, that’s, the Prime website (T); the hole place within the heart of the six-membered ring, which is the Hole place (H). Then, the adsorption power of Na+ (Eadvert) on TS-MoSe2 and MoSe2 was simulated in Fig. 6g, by which the optimistic Eadvert values on the T website recommend that the optimized adsorption website lies within the H website. Moreover, when adsorbed on the H place, the bigger Eadvert of TS-MoSe2 for sodium ions than MoSe2 signifies that the tensile pressure can improve the adsorption of the fabric to sodium ions. Lastly, the diffusion path of sodium ions between two adjoining adsorption websites was simulated (the inset in Fig. 6h and Supplementary Fig. 41), and the corresponding diffusion power barrier was calculated. From Fig. 6h, it may be seen that the diffusion power barrier of sodium ions in TS-MoSe2 is 0.75 eV, decrease than that in MoSe2. The calculation outcomes manifest that the tensile pressure can speed up the dynamics of sodium ions by enhancing the adsorption power to sodium ions in addition to lowering its diffusion power barrier, which is in line with the above experimental outcomes.



Please enter your comment!
Please enter your name here

Most Popular

Recent Comments
