Metabolic enchancment and liver regeneration by inhibiting CXXC5 perform for non-alcoholic steatohepatitis remedy

Facebook
Twitter
Pinterest
WhatsApp

CXXC5 is induced in liver tissues of obesity-related NASH

To elucidate the medical implications of the position of CXXC5 in NASH growth, we investigated the mRNA expression profiles of CXXC5 and Wnt-responsive genes in NASH sufferers with weight problems (Supplementary Desk 1) utilizing gene set enrichment evaluation (Gene Expression Omnibus (GEO): GSE48452). The outcomes of the microarray analyses confirmed that the mRNA ranges of the Wnt/β-catenin signaling goal genes concerned in metabolism, similar to TCF7L2, GLP1, AXIN2, FOSL1, and WISP1, had been decrease in liver tissues from NASH sufferers (Fig. 1a, b). Nevertheless, the mRNA and protein ranges of CXXC5, a adverse regulator of Wnt/β-catenin signaling, had been increased within the liver tissues of NASH sufferers than in these of regular topics (Fig. 1b, c and Supplementary Desk 2). In distinction, β-catenin expression was suppressed within the liver tissues of NASH sufferers, though that in regular topics was extremely expressed (Fig. 1c).

Fig. 1: The Wnt/β-catenin pathway inhibitor CXXC5 was induced within the liver tissues of sufferers and mice with NASH.
figure 1

a Gene set enrichment evaluation of microarray transcriptome information for regular and NASH sufferers for the Wnt/β-catenin signaling-activated gene signature. Black columns point out 83 enriched genes concerned within the Wnt/β-catenin signaling pathway within the liver tissue of overweight sufferers with all phases of NASH and controls (NASH, n = 18; management, n = 14). NES normalized enrichment rating, ES enrichment rating, FDR false discovery price. b Hierarchical clustering and heatmap of RNA-seq information in liver tissues from morbidly overweight sufferers with NASH (Regular, n = 4; NASH, n = 4). The colour scale reveals Z rating fragments per kilobase of transcript per million mapped reads representing the mRNA ranges of every gene within the blue (low expression) to pink (excessive expression) shade scheme. ce Consultant photos of CXXC5 and β-catenin expression in human liver (c), HFD + CCl4− (d), and HFD + GTG-induced NASH mouse (e) tissues. Graphs within the backside panels symbolize quantitative analyses of IHC staining for correlation of the expression of cytosolic CXXC5 and β-catenin with the NAS utilizing covariance within the liver tissues from regular and NASH human topics (Regular, n = 5; NASH, n = 12), these from NCD and HFD + CCl4-induced mice (NCD, n = 12; HFD + CCl4, n = 12), and people from NCD and HFD + GTG-induced mice (NCD, n = 8; HFD + GTG, n = 8). Scale bars, 100 µm. f, g Relative mRNA expression of Cxxc5 and Wnt/β-catenin signaling goal genes (Tcf7l2, Glp-1, Axin2, Fosl1, and Wisp1) within the livers of NCD- and HFD + CCl4-induced NASH mice (NCD, n = 12; HFD + CCl4, n = 12) (f) and NCD- and HFD + GTG-induced NASH mice (NCD, n = 8; HFD + GTG, n = 8) (g). Information symbolize the imply ± SD. *P < 0.05; **P < 0.01; ***P < 0.001 decided by Scholar’s t check.

To verify the position of CXXC5 in animal fashions, we used HFD plus carbon tetrachloride (HFD + CCl4)- or HFD plus gold thioglucose (HFD + GTG)-induced NASH mannequin mice (Supplementary Figs. 1, 2). The protein and mRNA ranges of Cxxc5 had been extremely elevated within the liver tissues of mice with NASH induced by HFD + CCl4 or HFD + GTG (Fig. 1d–g). However, β-catenin was expressed in hepatocytes of NCD-fed mice however was decreased in cells from NASH-induced mice (Fig. 1d, e). Furthermore, quantitative analyses confirmed that CXXC5 and β-catenin ranges had been correlated and inversely correlated, respectively, with the NAFLD exercise rating (NAS) in liver tissues of each sufferers with NASH and NASH-induced mice (Fig. 1c–e; backside panel). The expression of Wnt/β-catenin signaling response genes, similar to Tcf7l2, Glp-1, Axin2, Fosl1, and Wisp1, that are concerned in metabolic dysfunction, was decrease within the liver tissues of HFD + CCl4− or HFD + GTG-induced NASH mice (Fig. 1f, g). These outcomes point out that CXXC5 could also be a key consider NASH growth.

Cxxc5 induces metabolic dysfunction

To verify the position of CXXC5 within the pathogenesis of NASH, Cxxc5+/+ and Cxxc5−/− mice had been fed HFD + CCl4. The Cxxc5−/− mice exhibited decrease physique weight than the Cxxc5+/+ mice and considerably improved systemic glucose tolerance and insulin sensitivity (Fig. 2a–d), as confirmed by HOMA-IR analyses (Fig. 2e). The decrease physique weight of Cxxc5−/− mice correlated with a discount in adipogenic phenotypes in adipose and liver tissues (Fig. 2f–h). The variety of crown-like buildings (CLSs) and the scale of adipocytes had been decreased in each epididymal white adipose tissue (epiWAT) and subcutaneous white adipose tissue (scWAT) of the Cxxc5−/− mice (Fig. 2f). Liver tissues from Cxxc5−/− mice didn’t accumulate lipid droplets with the lower in TG content material (Fig. 2g, h). As well as, nuclear expression of Pparγ, the grasp regulator of adipogenesis27, was critically suppressed in liver tissue cells of Cxxc5−/− mice (Fig. 2g). A discount in hepatosteatosis was noticed in parallel with decrease steatosis and ballooning scores in Cxxc5−/− mice (Fig. 2i). Furthermore, the serum metabolic parameters, together with whole ldl cholesterol, HDL-cholesterol, TGs, leptin, and resistin, had been improved in Cxxc5−/− mice (Fig. 2j). Lastly, the expression ranges of hepatic lipogenic genes had been considerably decrease in Cxxc5−/− mice (Fig. 2k). General, Cxxc5 mediates metabolic dysfunction and hepatosteatosis induced by HFD + CCl4, as proven by the resistance of Cxxc5−/− mice.

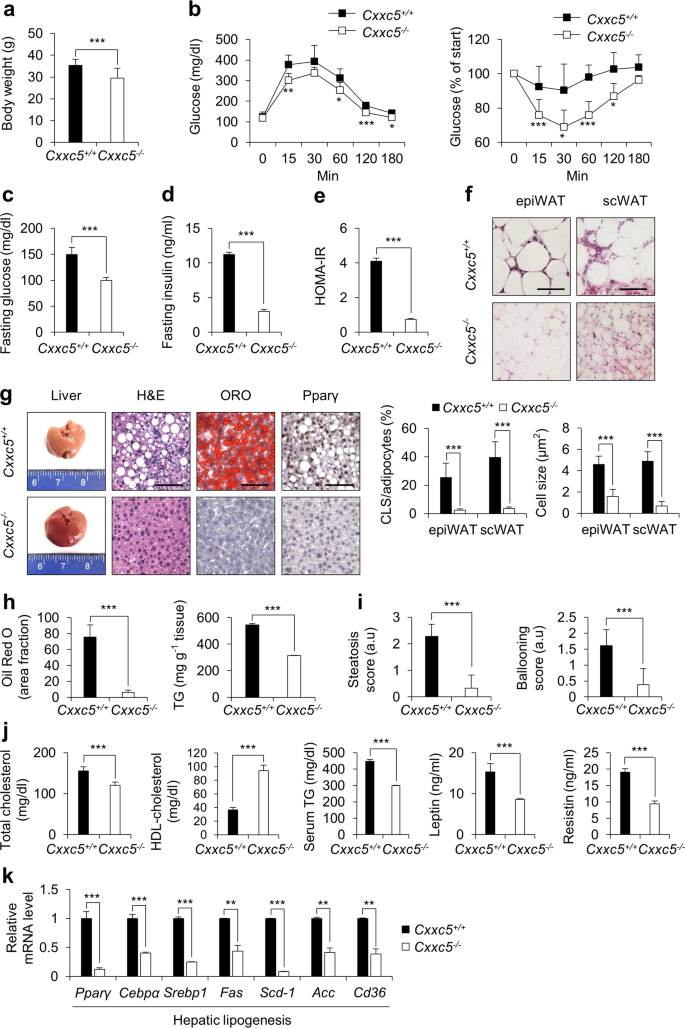

Fig. 2: Deletion of Cxxc5 ameliorates hepatic steatosis with metabolic enchancment.
figure 2

aokay Cxxc5+/+ and Cxxc5−/− mice had been fed a HFD for 12 weeks and injected with CCl4 twice every week for the ultimate 4 weeks to induce NASH (n = 7 per group). a Physique weight. b GTT and ITT. c Fasting glucose. d Plasma insulin focus within the in a single day fasted state. e HOMA-IR. f Consultant photos of H&E staining of epiWAT and scWAT (higher panel). Quantification of CLSs and cell dimension in adipocytes (decrease panel). Scale bars, 100 µm. g Consultant histological analyses of photos of liver tissue; H&E staining, ORO staining, and Pparγ staining. Scale bars, 100 µm. h Ratio of the ORO-positive space (left panel) and TG focus (proper panel) within the liver. i The scores of steatosis (left panel) and ballooning (proper panel). j Serum concentrations of whole ldl cholesterol, HDL-cholesterol, TGs, leptin, and resistin. okay Relative mRNA expression of genes concerned in hepatic lipogenesis (n = 3). Information symbolize the imply ± SD. *P < 0.05; **P < 0.01; ***P < 0.001 decided by Scholar’s t check.

Ablation of Cxxc5 resists the event of NASH

The administration of CCl4 mixed with HFD induces continual irritation and oxidative stress, adopted by liver fibrosis as in NASH28,29. The numbers of F4/80- and Cd11b-positive macrophages had been apparently decrease within the liver tissue of Cxxc5−/− mice than within the tissue of Cxxc5+/+ mice with induced NASH (Fig. 3a, b). These outcomes had been related to a discount within the irritation rating and with the expression of M1 macrophage markers in Cxxc5−/− mice (Fig. 3c, d). The NAS implied that different NASH phenotypes, together with steatosis, ballooning, and irritation, had been lowered in Cxxc5−/− mice (Fig. 3e). Moreover, hepatic reactive oxygen species (ROS) manufacturing was decreased in Cxxc5−/− mice (Fig. 3f). Hepatic cell dying was additionally considerably decreased in Cxxc5−/− mice, as proven by the terminal deoxynucleotidyl transferase dUTP nick finish labeling (TUNEL) assay and the expression of genes concerned in apoptosis (Fig. 3g, h). Liver fibrosis was largely not noticed, as proven by the histological analyses with decreased mRNA ranges of fibrogenic markers, together with alpha clean muscle actin (α-Sma), collagen sort 1 alpha 1 (Col1a1), metalloprotein-3 (Mmp-3), and remodeling development issue beta (Tgfβ) (Fig. 3i–okay). Decreased liver injury in Cxxc5−/− mice was confirmed by serum FFA, AST, and ALT ranges (Fig. 3l, m). Due to this fact, focusing on CXXC5 is a possible strategy for the event of brokers to deal with NASH.

Fig. 3: Deletion of Cxxc5 ameliorates NASH development.
figure 3

am Cxxc5+/+ and Cxxc5−/− mice had been fed a HFD for 12 weeks and injected with CCl4 twice every week for the ultimate 4 weeks to induce NASH (n = 7 per group). a Consultant IHC photos of F4/80- and Cd11b-stained liver tissues (left panel). Quantification of hCLS formation and F4/80- and Cd11b-positive areas (proper panel). Scale bars, 100 µm. b Stream cytometry analyses of the expression of F4/80 and Cd11b (left panel). Share of F4/80+Cd11b+ cells (n = 3) (proper panel). c Irritation rating. d Relative mRNA expression ranges of genes concerned in pro-inflammation (n = 3). e The NAFLD rating. f Consultant photos of DHE-stained cells (left panel). Quantification of ROS formation by measuring DHE-positive cells in liver tissues (proper panel). Scale bar, 100 µm. g TUNEL staining of the liver (high panel). Quantification of TUNEL-positive cells (backside panel). Scale bar, 100 µm. h Relative mRNA expression of genes concerned in cell dying pathways (n = 3). i Consultant IHC photos for α-Sma, collagen I, desmin, and Sirius pink staining of liver tissues. Scale bars, 100 µm. j Relative mRNA expression of genes concerned in fibrogenesis (n = 3). okay The fibrosis rating. l, m Plasma concentrations of FFAs (l), AST and ALT (m). Information symbolize the imply ± SD. *P < 0.05; **P < 0.01; ***P < 0.001 decided by Scholar’s t check.

KY19334 improves weight problems and metabolic dysfunctions in mouse NASH fashions

As an strategy to abolish CXXC5 perform and decide its position within the pathological phenotypes of NASH, we examined the consequences of KY19334, a small molecule that prompts the Wnt/β-catenin pathway by inhibiting its interplay with Dvl24. This strategy permits the precise blockade of the perform of cytosolically overexpressed CXXC5 in an effort to activate suppressed Wnt/β-catenin signaling goal genes concerned in mobile metabolism (Fig. 4a). The roles of KY19334 within the suppression of systemic metabolic dysfunction within the development of NASH had been investigated by its oral administration, and its impact was in contrast with the consequences of selonsertib and ocaliva at an similar focus (25 mg/kg of physique weight) or automobile (Supplementary Fig. 3a). KY19334-treated mice confirmed improved serum metabolic parameters, together with whole ldl cholesterol, HDL-cholesterol, TGs, leptin, and resistin, in comparison with these of selonsertib- or ocaliva-treated mice (Fig. 4b, c). As assessed by protein chip analyses, KY19334 decreased the protein expression of a number of metabolic, proinflammatory, and fibrogenic cytokines and chemokines, linking the induction of the general phenotype of NASH (Supplementary Fig. 3b). Glucose tolerance and insulin sensitivity had been most importantly improved by KY19334 administration (Fig. 4d–f). Notably, KY19334 promoted browning of scWAT, as proven by the precise induction of mitochondrial biogenesis markers, together with thermogenin uncoupling protein 1 (UCP1) and beige-fat markers, which had been decreased in HFD + CCl4-induced NASH in mice (Fig. 4g, h). Nevertheless, the mRNA ranges of each mitochondrial biogenesis and beige-fat markers didn’t change within the scWAT of mice administered selonsertib or ocaliva (Fig. 4h). General, blockade of the Wnt/β-catenin signaling inhibitory perform of CXXC5 improves systemic metabolic abnormalities.

Fig. 4: KY19334 remedy improves glucose metabolism and insulin sensitivity in NASH mice.
figure 4

ah C57BL/6 mice fed a NCD or HFD + CCl4 had been orally administered KY19334, selonsertib, or ocaliva at 25 mg/kg/d for 4 weeks (n = 10 per group). a Relative mRNA expression of Wnt/β-catenin signaling goal genes (Tcf7l2, Glp-1, Axin2, Fosl1, and Wisp1) (n = 3). b Serum concentrations of leptin and resistin. c Serum focus of whole ldl cholesterol, HDL-cholesterol, and TGs. d Fasting glucose. e GTT and ITT. f Plasma insulin focus within the in a single day fasted state (high panel) and HOMA-IR (backside panel). g Consultant photos of H&E and IHC staining for Ucp1. Scale bars, 100 µm. h Relative mRNA expression of genes which are markers of mitochondria and beige fats (n = 3). Information symbolize the imply ± SD. *P < 0.05; **P < 0.01; ***P < 0.001 decided by Scholar’s t check.

KY19334 attenuates hepatic steatosis in NASH mice with restorative activation of the suppressed Wnt/β-catenin pathway

The therapeutic effectiveness of KY19334 in NASH was evaluated by analyzing its results on the pathological phenotypes of the liver. Cytosolic Cxxc5 was extremely expressed within the liver tissue cells of HFD + CCl4-induced NASH mice (Fig. 5a). Nevertheless, in comparison with the vehicle-, selonsertib-, and ocaliva-treated mice, elevation of β-catenin following activation of Wnt/β-catenin goal genes was noticed within the liver tissue cells of KY19334-treated mice (Fig. 5a, b). In help of a correlation between β-catenin and steatosis, the NASH-induced mouse livers had been a milky pale shade indicating fatty liver, which was not considerably noticed in mice administered KY19334 (Fig. 5c). The histological options of liver tissues confirmed crucial suppression of steatosis by KY19334, and its impact was way more outstanding than that of ocaliva or selonsertib, which confirmed no important impact on the discount of hepatic steatosis as evaluated by ORO staining and measurement of the degrees of TGs (Fig. 5d). As well as, KY19334-treated mice confirmed a extra important discount in nuclear accumulation of Pparγ than mice handled with selonsertib or ocaliva (Fig. 5e). Equally, the mRNA expression ranges of the hepatic lipogenic genes had been extra considerably suppressed by KY19334 (Fig. 5f), confirming the discount in hepatic steatosis by KY19334 remedy.

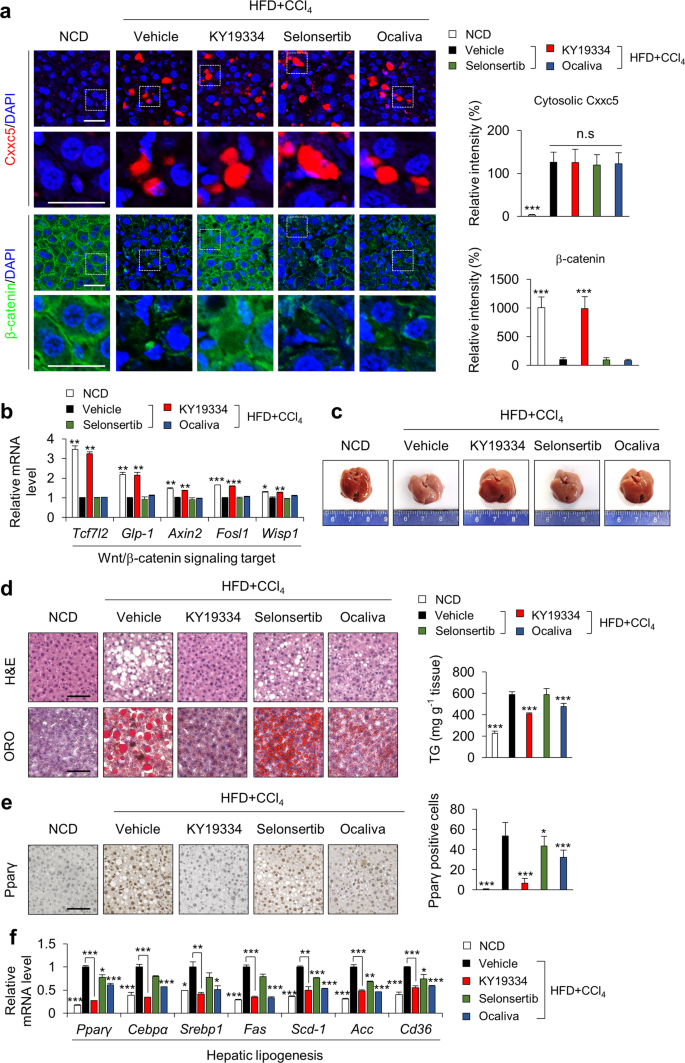

Fig. 5: KY19334 prompts the Wnt/β-catenin pathway and suppresses steatohepatitis in NASH-induced mice.
figure 5

af C57BL/6 mice fed a NCD or HFD + CCl4 had been orally administered KY19334, selonsertib, or ocaliva at 25 mg/kg/d for 4 weeks (n = 10 per group). The liver tissues had been analyzed by numerous histochemical and biochemical methodologies. a Consultant photos of Cxxc5 and β-catenin (left panel) and quantitative analyses of IHC staining for cytosolic Cxxc5 and β-catenin (proper panel). b Relative mRNA expression of Wnt/β-catenin signaling goal genes (Tcf7l2, Glp-1, Axin2, Fosl1, and Wisp1) (n = 3). c Consultant gross photos of the liver. d Consultant histological photos of H&E staining and ORO staining (left panel). Quantification of the TG focus within the liver tissue (proper panel). Scale bars, 100 µm. e Consultant IHC photos of Pparγ-stained liver tissue (left panel). Quantification of Pparγ-positive cells (proper panel). Scale bar, 100 µm. f Relative mRNA expression of genes concerned in hepatic lipogenesis (n = 3). Information symbolize the imply ± SD. *P < 0.05; **P < 0.01; ***P < 0.001 decided by Scholar’s t check.

KY19334 suppresses hepatic irritation, oxidative stress, and apoptosis related to NASH

As proven by monitoring F4/80+ and Cd11b+ cells and crown-like buildings within the liver tissue, the irritation induced by HFD + CCl4 was suppressed by remedy with KY19334, selonsertib, or ocaliva (Fig. 6a, b). The upregulated hepatic mRNA ranges of monocyte/macrophage infiltration markers had been all attenuated by KY19334, selonsertib, or ocaliva remedy (Fig. 6c). Though the irritation induced by HFD + CCl4 was equally suppressed by KY19334, as with selonsertib or ocaliva remedy, the NAS was way more successfully decreased by KY19334 than by selonsertib or ocaliva (Fig. 6d). Oxidative stress was induced within the liver tissues of the HFD + CCl4-induced NASH mice, and this was largely suppressed by KY19334, though it was solely weakly decreased by selonsertib or ocaliva (Fig. 6e, f). Constantly, as monitored by the TUNEL assay, cell dying was abolished by KY19334, however selonsertib or ocaliva confirmed a weak impact (Fig. 6e, g). The expression ranges of apoptotic markers had been markedly decreased within the liver tissue of KY19334-treated mice (Fig. 6h). Collectively, KY19334 suppresses oxidative stress, apoptosis, and hepatic irritation throughout NASH growth.

Fig. 6: KY19334 suppresses hepatic irritation and fibrosis in NASH-induced mice.
figure 6

aokay C57BL/6 mice fed a NCD or HFD + CCl4 had been orally administered KY19334, selonsertib, or ocaliva at 25 mg/kg/d for 4 weeks (n = 10 per group). The liver tissues had been analyzed by numerous histochemical and biochemical methodologies; a Consultant IHC photos of F4/80- and Cb11b-stained liver tissue. Captures are excessive magnification of hCLSs. Scale bars, 100 µm. b Quantification of hCLS formation (high panel) and the Cd11b-positive space (backside panel). c Relative mRNA expression of genes concerned in pro-inflammation (n = 3). d The scores of steatosis, ballooning, irritation, and NAFLD. e Consultant photos of DHE- or TUNEL-stained livers. Scale bar, 100 µm. f Quantification of ROS formation by measuring DHE-positive cells. g Quantification of TUNEL-positive cells. h Relative mRNA expression of genes concerned in cell dying pathways (n = 3). i Consultant IHC photos of α-Sma and collagen I staining. Scale bars, 100 µm. j Relative mRNA expression of genes concerned in fibrogenesis (n = 3). okay Serum focus of FFAs, AST, and ALT. Information symbolize the imply ± SD. *P < 0.05; **P < 0.01; ***P < 0.001 decided by Scholar’s t check.

KY19334 reverses liver fibrosis related to NASH

We subsequent evaluated the consequences of KY19334 on hepatic fibrosis as a consequence of continual liver harm utilizing HFD + CCl4-model mice. Liver fibrosis monitored by the buildup of α-Sma, collagen I, desmin, and Sirius pink staining, in addition to by measuring the mRNA ranges of α-Sma, Col1a1, Mmp-3, and Tgfβ1, was considerably decreased by KY19334 remedy in comparison with remedy with selonsertib or ocaliva (Fig. 6i, j and Supplementary Fig. 4a). The suppression of fibrosis by KY19334 was way more important than that noticed after remedy with selonsertib or ocaliva (Supplementary Fig. 4b). As well as, NASH-induced will increase in serum parameters indicating liver injury, together with FFAs, AST, and ALT, had been extra considerably inhibited by KY19334 remedy than by selonsertib or ocaliva remedy (Fig. 6k). Collectively, these outcomes display that KY19334 successfully reverses the development of liver fibrosis throughout NASH growth.

KY19334 enhances liver regeneration in NASH mice

The outstanding results of KY19334 on the reversion of a number of NASH phenotypes led us to analyze its position within the activation of stem cells residing within the liver. Lgr5, the transcriptional goal of the Wnt/β-catenin pathway concerned within the activation of stem cells and subsequent tissue regeneration21, and the Cd133 stem cell marker had been induced by liver injury in HFD + CCl4-induced NASH mice (Fig. 7a–c). The numbers of Lgr5+ and Cd133+ cells had been considerably elevated by administration of KY19334 however not by selonsertib or ocaliva (Fig. 7a–c). The regenerative impact of KY19334 was additional confirmed by the overlapping staining of cells for Lgr5+ and Cd133+ (Fig. 7a). The mRNA expression of hepatic progenitor markers, together with EpCam, Sox9, Cd44, and Prom1, was additionally induced by KY19334 however not by selonsertib or ocaliva within the liver tissues of NASH-induced mice (Fig. 7d). The rise in Lgr5+ cells was correlated with β-catenin expression following KY19334 remedy (Fig. 7e). Furthermore, KY19334 promoted the proliferation of hepatocytes, as proven by the rise in Ki67 and the hepatocyte progenitor marker Hnf4α (Fig. 7f). The liver regenerative impact of KY19334 is attributed to the management of cytosolic CXXC5 perform, as confirmed by the same will increase in Lgr5+ cells in Cxxc5−/− mice with NASH induced by an similar mannequin system (Supplementary Fig. 5a–f). General, the restoration of liver fibrosis by blocking the inhibitory perform of Cxxc5 on Wnt/β-catenin signaling correlates with activation of the regenerative system within the liver tissue of NASH mice.

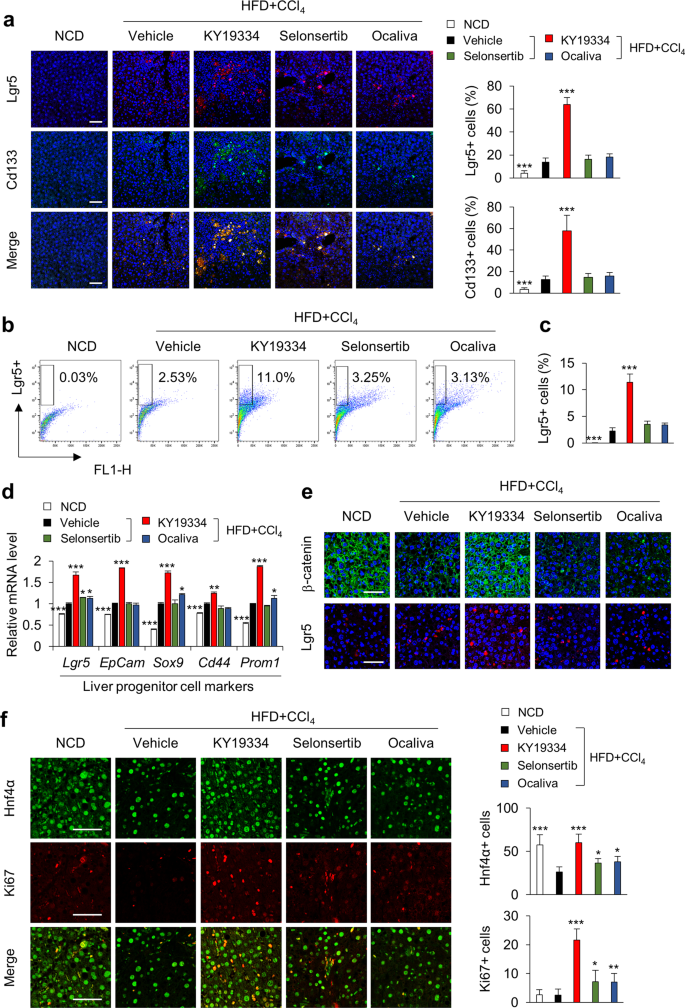

Fig. 7: KY19334 promotes regeneration of liver tissue in NASH-induced mice.
figure 7

af C57BL/6 mice fed a NCD or HFD + CCl4 had been orally administered KY19334, selonsertib, or ocaliva at 25 mg/kg/d for 4 weeks (n = 10 per group). The liver tissues had been analyzed by numerous histochemical and biochemical methodologies. a Consultant IHC photos stained for Lgr5 or Cd133 (left panel). Quantification of Lgr5- and Cd133-positive cells (proper panel). Scale bars, 100 µm. b Stream cytometry analyses of the expression of Lgr5 (n = 3). c Quantification of Lgr5-positive cells by move cytometry analyses. d Relative mRNA expression of Lgr5 and liver progenitor cell markers (n = 3). e Consultant IHC photos stained for β-catenin or Lgr5. Scale bars, 100 µm. f Consultant IHC photos stained for Hnf4α or Ki67 (left panel). Quantification of Hnf4α+ and Ki67+ cells (proper panel). Scale bars, 100 µm. Information symbolize the imply ± SD. *P < 0.05; **P < 0.01; ***P < 0.001 decided by Scholar’s t check.
