Impression of washing parameters on bacterial filtration effectivity and breathability of group and medical facemasks

Facebook
Twitter
Pinterest
WhatsApp

BFE and DP of recent masks

The outcomes of the BFE and the DP of the ten group face masks and the medical face masks when unused are offered in Fig. 2a,b and in supplementary Desk S2 (together with Q issue values). In line with the EN 14683:2019 normal process, solely the fabric constituting the masks was evaluated and leakage isn’t thought of on this research. The horizontal dashed traces signify the EN 14683:2019 efficiency requirement; for kind IIR (≥ 98% assortment effectivity and ≤ 60 Pa cm−2 differential strain), kind II (≥ 98% assortment effectivity and ≤ 40 Pa cm−2 differential strain) and kind I (≥ 95% assortment effectivity and ≤ 40 Pa cm−2 differential strain).

Determine 2
figure 2

(a) Bacterial Filtration Effectivity (%) and (b) Differential strain (Pa cm−2) for the medical face masks and group face masks, (common values (N = 5) ± standard-deviation). CFM corresponds to Neighborhood Face Masks, 2L corresponds to 2 layers and 3L to three layers.

The outcomes confirmed that every one the masks have been criticism with the breathability requirement for the varied classes of medical face masks (kind I, kind II and kind IIR) besides one group face masks (i.e. CFM-B-3L) that was not in compliance with a kind I or kind II masks however within the restrict of compliance of a kind IIR masks. The medical face masks had the very best filtration effectivity of 99% and was compliant in accordance with kind II medical face masks normal. There was a variability within the filtration effectivity of the group face masks with the BFE ranging between 73 and 97%. Solely 2 group face masks (i.e. CFM-A-2L and CFM-B-3L) had BFE exceeding 95%, the BFE requirement for Sort I medical face masks. However all issues thought of, just one CFM (i.e. CFM-A-2L) is compliant with a kind I medical face masks requirement, as a result of the breathability of CFM-B-3L is properly above the DP restrict of 40 Pa cm−2. Lastly, The MFM present a Q issue at 60.1 kPa−1 and the CFMs within the 12.1–28.4 kPa−1 vary (see Desk S2).This outcome clearly present {that a} compromise needs to be discovered between the BFE and the breathability to fabricate group face masks with wonderful properties. In different phrases, the important thing technical problem for producers is to acquire group face masks with excessive filtration effectivity however with out sacrificing their breathability.

The filtration of aerosol droplets utilizing a face masks is ruled by a number of mechanisms: impaction, interception, diffusion, and electrostatic attraction9,23. The contribution of every mechanism to the filtration effectivity of a face masks is determined by the supplies used (porous structural variations), aerosol droplet sizes, and the working circumstances (temperature, humidity, and air filtration velocity). For aerosol droplets > 1 µm, impaction and interception mechanisms are extra vital. For small particles < 0.1 µm, diffusion by Brownian movement is the dominant mechanism. When the masks materials is charged, electrostatic forces contribute to particle seize particularly for particles in essentially the most penetrating particle measurement (MPPS) vary of 0.1–0.5 µm (MPPS zone)24 the place no mechanism is dominant. For the common particle measurement of three µm required for the BFE, impaction and interception are essentially the most dominant mechanisms.

The efficiency of the group face masks is influenced by cloth traits however essentially the most influential traits are at the moment unclear25. Floor traits of the fabric used, such because the pore measurement disbution (within the 113–981 µm vary for CFMs) or the fiber diameter (within the 12–18 µm vary for CFMs) are vital parameters that probably affect the efficiency of the masks26. The outcomes of the pore measurement distribution on CFM and MFM offered in Supplementary Desk S3 completely present that though an apparent normal pattern appears to point that the upper the pore measurement, the decrease the filtration effectivity, it’s troublesome to make a sturdy correlation of the filtration effectivity solely from these structural parameters of the masks—, In addition to, in relation to effectivity, it’s not simply the pores measurement which might be accountable for capturing aerosols, the fiber diameter can be vital, particularly for masks made from non-woven cloth, as is the case with MFM. Relying on the dimensions and quantity pores the masks created from braided materials, the air move can enhance or lower when passing via these pores, rising or not the move velocity.

The consultant microscopic photos of the group face masks and the medical face masks are proven in Fig. 3. For brevity, solely 3 out of the ten group face masks are represented. Fibrous filter supplies are often comprised of fibers organized in a number of methods. For non-woven supplies, fibers are randomly oriented while woven and knitted supplies include yarns (bundles of fibers) which might be interlaced to one another27. The pores are shaped at yarn interstices for the woven and knitted materials while they’re shaped by small areas between particular person fibers in non-woven filters27. The areas in between yarns have been thought of because the pores for the group face masks. Though the pore form and measurement in group face masks weren’t uniform, we tried to extract quantitative data on the dimensions of the inter-yarn pores by measuring the longest dimension of every inter-yarn pore utilizing ImageJ software program. The measurements offered an estimation of the dimensions of an inter-yarn pore in every group face masks: round 150 μm, 330 μm and 900 μm for CFM-A-2L, CFM-E-3L and CFM-J-3L respectively (Fig. 3 and Supplementary Desk S3). This might most likely clarify why CFM-A-2L had the very best filtration effectivity while CFM-J-3L had the bottom. Medical face masks are sometimes made up of three layers of non-woven polypropylene fibers (spunbound, meltblown, and spunbound layers). The pore measurement of the meltblown layer of the medical face masks are estimated to be round 20 μm28,29. The small pore measurement of the meltblown layer in comparison with the completely different group face masks might probably account for its larger filtration effectivity.

Determine 3
figure 3

Optical microscopy photos of the microscopic construction of three group face masks and the medical face masks. (4× magnification and pink scale bar corresponds to 100 μm). Optical microscopy photos of all CFMs are offered in supplementary Fig.S1.

Within the case of CFMs investigated on this research, the variety of layers of the masks wasn’t essentially the most influential parameter. CFM-J-3L which is a 3 layer masks had the bottom BFE while CFM-A-2L, a 2 layer masks, had the very best BFE. It appears on this case that layering materials with very excessive pore measurement doesn’t essentially enhance the BFE or DP.

Primarily based on the outcomes (Fig. 2), 4 classes of masks might be recognized:

  • Firstly, the medical face masks which has wonderful BFE (> 98% (kind II)) and low DP (≤ 40 Pa cm−2) is compliant with kind II medical face masks necessities.

  • The CFM-A-2L, which has a very good BFE (> 95% (kind I)) and low DP (< 40 Pa cm−2), that may be categorized as a kind I medical face masks.

  • The CFM-B-3L, which has a very good BFE (> 95% (kind I)) however a too excessive DP (≈60 Pa cm−2), that can’t be categorized as a kind I medical face masks since this good filtration effectivity was obtained on the expense of poor breathability properties.

  • And lastly the 8 different group face masks which had insufficient BFE in accordance with medical face masks necessities (70% < BFE < 95%) with right DP (< 40 Pa cm−2).

To be efficient a masks must each filter out particles and permit an individual to breathe simply. Producing group face masks sometimes entails a compromise between the BFE and DP and in some instances, having a excessive BFE comes at the price of having a excessive DP resulting in low breathability as seen for CFM-B- 3L. In line with the outcomes of the group face masks, we demonstrated that it’s potential to have group face masks that carry out equally to a medical face masks. Certainly, out of our panel of 10 group face masks, only one met the BFE and DP necessities of a kind I medical face masks, however couldn’t obtain the sort II necessities just like the medical face masks chosen on this research. Neighborhood face masks are made to be washed and as this will alter the performances, the subsequent a part of the research seeks to guage the affect of the washing parameters. Solely the group face masks that revered the BFE requirement for a kind I (CFM-A-2L, CFM-B-3L) have been chosen and in comparison with the medical face masks.

Affect of wash cycles on the efficiency of the masks

Firstly, focusing solely on the parameters required by EN 14683:2019 normal (i.e. BFE and DP), we should underline that the face-fit property of the masks earlier than and after washes has not been examined. It’s recognized that face seal leakage can have a stronger affect on wearers’ aerosol and micro organism publicity than filtration effectivity and the form and face-fit of a masks can change after a vigorous wash and spin of the masks. Nonetheless, we wish to level out that, by nature, the masks used on this research should not designed to be worn “tight” in contrast to different forms of face masks like FFP2 or KN95 respirators. Subsequently, the face-fit property of medical masks isn’t a property that’s required by regulation within the EN 14683:2019 normal (the surgical masks not being designed to be completely tight). There’s due to this fact no acknowledged regulatory protocol for measuring this property on surgical masks (in contrast to the usual for FFP respirators).

To guage the impact of the wash cycles, the masks have been washed 10, 30 and 50 occasions at 60 °C with the laundry detergent. The outcomes of the BFE and DP are proven in Fig. 4. From the graph (Fig. 4b), it’s noticed that washing didn’t considerably impression the differential strain of the medical face masks and the group face masks.

Determine 4
figure 4

Affect of the wash cycles on the: (a) Bacterial Filtration Effectivity (%) and (b) Differential Stress (Pa cm−2) on the medical face masks and group face masks. Common values (N = 5) ± standard-deviation.

In regards to the group face masks, the washing cycles didn’t impression in a big method the BFE and thus they have been in a position to preserve their efficiency as much as 50 washes. This was in accordance to earlier research by Sankhyan et al.30, who discovered that group face masks may very well be washed 52 occasions with out vital loss in particle filtration effectivity. For the medical face masks, the BFE decreased by 1% when the masks have been washed however its DP remained fixed as much as 50 washes. Alcaraz et al.17 additionally noticed a slight lower in BFE of medical facemasks when washed however concluded that they may very well be washed as much as 10 occasions with out additional degradation of the filtration or breathability properties. The rationale for the lower in effectivity when the medical face masks is washed is because of the lack of electrostatic expenses which will probably be defined in “Affect of using detergent on the efficiency of the masks” part.

SEM photos of the brand new and washed medical face masks (meltblown layer) and the group face masks are offered in Fig. 5. The brand new group face masks exhibited fiber bundles (yarns) that have been globally intact with comparatively clean texture. After 10 washes, there was some liberation of particular person fibers from the fiber bundles and there was some deconstruction of the person fibers which elevated barely after 50 washes (Fig. 5a,b). This nevertheless didn’t appear to impression the efficiency of the masks, as regardless of the liberation and deconstruction, the fiber bundles remained globally intact. For the medical face masks, only a few meltblown fibers exhibited breakages (Fig. 5c).

Determine 5
figure 5

SEM photos (200X magnification and scale bar corresponds to 100 μm) of : (a) CFM-A-2L, (b) CFM-B-3L, (c) meltblown layer of the medical face masks; for the brand new and washed masks subjected to various variety of wash cycles.

Affect of temperature on the efficiency of the masks

The impact of the wash temperature on the efficiency of the masks was studied by various the temperature at 30 °C and 60 °C while the variety of wash cycles was stored at 10 and detergent used for every wash. The outcomes of the BFE and DP for the masks are proven in Fig. 6a,b.

Determine 6
figure 6

Affect of the wash temperature on (a) Bacterial Filtration Effectivity (%) and (b) Differential Stress (Pa cm−2) for the medical face masks and the group face masks Common values (N = 5) ± standard-deviation.

Almost about the group face masks, the temperature didn’t appear to affect drastically their performances (BFE and breathability). The SEM photos (see Supplementary Fig. S2a,b) confirmed related deconstruction ranges of the washed fibers which is attributed to the masks being washed 10 occasions fairly than the temperature. The fiber bundles have been globally intact in all instances.

For the medical face masks, there was a lower within the BFE of the washed masks in comparison with the brand new masks, nevertheless, the wash temperature didn’t appear to affect its BFE. The meltblown layer of the medical face masks is charged electrostatically by corona impact to extend particle assortment effectivity. The cost stability might be affected by temperature. Liu et al.31 subjected the electret meltblown layer to warmth remedy at a number of temperatures at numerous occasions (1–24 h) and observed that under 70 °C the impact on the filtration effectivity was minimal up till 24 h of remedy however when the temperature was elevated to 90 or 110 °C, the filtration effectivity decreased considerably with the rise of the remedy time. They attributed it to the truth that larger temperatures led to larger cost escape/loss which subsequently led to a discount in electrostatic impact. The temperatures studied on this work weren’t excessive sufficient to impression the cost stability of the electret layer and will clarify why there was no impression on the BFE. SEM photos (see Supplementary Fig. S2c) additionally present that the temperature didn’t have an effect on the fiber morphology. Lastly, the DP of the medical face masks wasn’t additionally impacted by the temperature change.

Affect of using detergent on the efficiency of the masks

The masks have been washed 10 occasions, at 60 °C with and with out detergent to find out the affect of using detergent on their efficiency. The outcomes of the BFE and DP are proven in Fig. 7a,b.

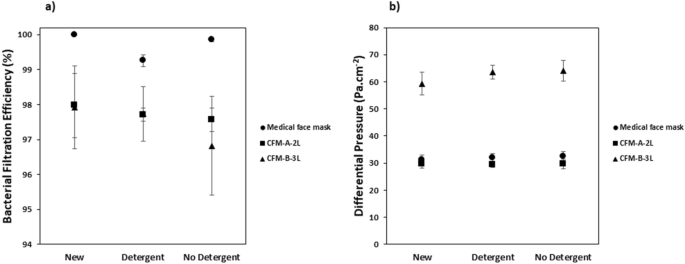

Determine 7
figure 7

Affect of detergent on (a) Bacterial Filtration Effectivity (%) and (b) Differential Stress (Pa cm−2) for the medical face masks and the group face masks. Common values (N = 5) ± standard-deviation.

The presence of the detergent didn’t appear to impression considerably the BFE and DP of the group face masks. SEM evaluation (see Supplementary Fig. S3a,b) additionally confirmed that the fiber morphology was not considerably impacted by way of a detergent and as soon as once more the deconstruction of the fibers was attributed to the variety of wash cycles. The fiber morphology of the medical face masks was additionally not considerably impacted by way of a detergent as proven in Supplementary Fig. S3c.

In regards to the medical face masks, the BFE for the masks washed with out detergent was much like that of the brand new masks however the BFE was decreased when the masks was washed with the detergent. This exhibits that the presence of the detergent might be accountable for the loss in BFE for the medical face masks. The washing brokers current within the detergent are prone to bind to the floor and trigger a lack of electrostatic expenses of the electret meltblown layer32,33,34,35. This remark was additionally highlighted by Charvet et al.16 and Alcaraz et al.17. The discount of effectivity was noticed just for the submicron particles (impaction plate assortment measurement between 1.1 and 0.65 μm) as proven in Fig. 8. Inertial impaction and/or direct interception are the dominant particle seize mechanisms for particles > 1 μm however for submicron particle sizes different mechanisms significantly the electrostatic mechanism play an vital position.

Determine 8
figure 8

Affect of various washing circumstances on the Spectral Bacterial Filtration Effectivity (%) of the medical face masks Common values (N = 5) ± standard-deviation.

The lack of electrostatic results might possible be attributed to the presence of cationic surfactants in cloth softeners. These compounds, notably esterquats, possess wonderful antistatic properties and are used to stop the buildup of static expenses. Thus, the elements of detergent have definitely a robust affect on the degradation of filtration effectivity. Subsequently the lack of electrostatic expenses attributable to the detergent tends to cut back filtration effectivity for the submicron particles. Charvet et al.16 and Alcaraz et al.17 mimicked the lack of electret impact by discharging a medical face masks in isopropanol. Their outcomes confirmed that spectral filtration effectivity of a masks discharged by immersion in isopropanol was much like that of a washed masks.
