Disarming of kind I-F CRISPR-Cas surveillance complicated by anti-CRISPR proteins AcrIF6 and AcrIF9


AcrIF6 and AcrIF9 inhibit Aa-CRISPR-Cas in vivo

Earlier research of the AcrIF exercise have been centered primarily on the inhibition of the Pseudomonas aeruginosa (Pa) CRISPR-Cas system. We wished to analyze whether or not these AcrIF proteins are succesful to intervene with our mannequin Aggregatibacter actinomycetemcomitans (Aa) CRISPR-Cas system (Fig. 1a), which in-depth biochemical evaluation was carried out beforehand14. It’s distinct from the Pa-CRISPR-Cas on the protein sequence degree (Supplementary Desk S1). For the time being of our analysis, ten AcrIF households (AcrIF1-AcrIF10) have been segregated thus we examined their inhibitory exercise in vivo12,15 (Supplementary Desk S2). We co-expressed AcrIF proteins with the Aa-CRISPR-Cas system, which was guided to focus on the genome of the recombinant E. coli cells. Subsequently, cells carrying inactive AcrIF have been killed by the Aa-CRISPR-Cas system, whereas the energetic AcrIFs protected the host from genome harm (Fig. 1b). In our assay, solely the homologues of AcrIF6 (Os and Pa) and AcrIF9 (Aa1, Aa2, Aa3, Vp) households inhibited the motion of the Aa-CRISPR-Cas system, whereas the AcrIF1–AcrIF5, AcrIF7, AcrIF8, and AcrIF10 proteins confirmed no safety in vivo (Fig. 1c and Supplementary Fig. S1). Subsequent, we purified Os-AcrIF6, Aa1-AcrIF9, Aa2-AcrIF9, Aa3-AcrIF9, and Vp-AcrIF9 proteins (Supplementary Fig. S2) to evaluate their motion in vitro (until we need to stress explicit homologue, for simplicity additional within the textual content we seek advice from Os-AcrIF6 and Aa1-AcrIF9 proteins as AcrIF6 and AcrIF9, respectively).

Determine 1
figure 1

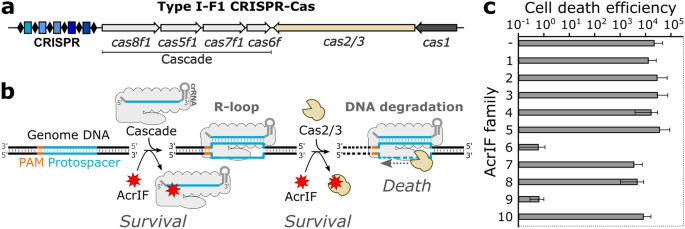

Inhibitors of Aa-CRISPR-Cas system. (a) Schematic illustration of the Aa-CRISPR-Cas locus composed of six cas genes and CRISPR locus. Cascade genes are underlined. (b) Rescue assay by AcrIF. The E. coli genomic DNA was focused by the Cascade complicated forming the R-loop, which triggered the Cas2/3-mediated DNA degradation resulting in cell demise. The cell might survive when the AcrIF blocked the motion of both Cascade or Cas2/3. (c) In vivo inhibition of Aa-CRISPR-Cas by the AcrIFs. Representatives from the AcrIF1-10 households have been co-expressed with the Aa-CRISPR-Cas system both focusing on or non-targeting the E. coli genome. Empty vector (–) was used as a management. The ratio of transformation efficiencies of non-targeting and focusing on guides was expressed as cell demise efficiencies. Error bars symbolize customary deviations of common in at the least three separate experiments.

AcrIF6 and AcrIF9 work together with Aa-Cascade

Acr proteins act by focusing on numerous parts of the CRISPR-Cas effector complicated. Within the case of kind I-F CRISPR-Cas methods, AcrIFs impede the motion of both the Cascade complicated or the Cas2/3 nuclease-helicase9,10. In precept, Acrs can interrupt the CRISPR-Cas safety in 3 ways: (i) forestall the DNA goal recognition and binding, (ii) disassemble the R-loop, or (iii) hinder DNA degradation. We carried out in vitro experiments to delineate, which mechanistic method is utilized by the AcrIF6 and AcrIF9 proteins within the case of the Aa-system.

We examined the affect of AcrIFs for the Aa-CRISPR-Cas motion earlier than and after the R-loop formation, i.e., AcrIF6/9 was both incubated with the Aa-Cascade complicated earlier than DNA addition or combined with the preformed R-loop (Fig. 2a). First, we monitored the affect of those AcrIFs on the Cascade-Cas2/3 mediated DNA goal degradation, which happens unidirectionally upstream from the R-loop leaving the downstream DNA intact. Each AcrIF6 and AcrIF9 hindered the degradation once they have been combined with Cascade earlier than DNA introduction. Opposite, these AcrIFs had no affect on DNA degradation when the R-loop was already shaped (Fig. 2b). Thus, each AcrIF6 and AcrIF9 intervene with the R-loop formation; nevertheless, they don’t affect the exercise of Cas2/3 within the presence of the R-loop.

Determine 2
figure 2

AcrIF6 and AcrIF9 interaction with the Cascade. (a) Mixing order of response parts. AcrIF protein was launched both earlier than (red-coded) or after (blue-coded) the R-loop formation (1). Then cleavage was initiated by Cas2/3 addition (2). (b) The Cas2/3-mediated cleavage. Rising AcrIF concentrations (5, 50, 500, 5000 nM) have been launched to the cleavage reactions as indicated in (a). (c) Cascade binding to the DNA goal. Rising AcrIF concentrations (30, 300, 3000, 20,000 nM) have been launched to twenty nM Cascade binding reactions as indicated in (a). The binding reactions have been assayed by EMSA in agarose gel. See Supplementary Fig. S3 for EMSAs utilizing 100 nM Cascade. (d) The footprint of the R-loop within the presence of the AcrIF6 and AcrIF9. Reactions have been combined as indicated in (a; 1) then the footprint of the R-loop was initiated by the addition of KMnO4. The strong line above the gel signifies the boundaries of the R-loop.

Subsequent, we employed EMSA to investigate Cascade binding to the goal DNA within the presence of the AcrIF6 and AcrIF9 proteins (Fig. 2c and Supplementary Fig. S3). Each AcrIF6 and AcrIF9 hindered the precise interplay of the Cascade with the goal DNA because the rising focus of the AcrIF6 and AcrIF9 led to unbound DNA. When AcrIF proteins have been launched after R-loop formation no unbound DNA was current within the gel exhibiting that these proteins can’t rip off the Cascade from the preformed R-loop (Fig. 2c). That is in settlement with the footprint of the Cascade the place we monitored the interference of the R-loop formation by AcrIF6 and AcrIF9; nevertheless, these proteins have been incapable to disassemble the preformed R-loop (Fig. 2nd). Within the presence of AcrIF9 and Cascade, the smeared DNA band above the bands comparable to the unbound DNA or R-loop appeared. The electrophoretic mobility of the smeared DNA band even decreased by rising the Cascade focus (a five-fold improve) (Supplementary Fig. S3). Nonetheless, AcrIF9 protein within the absence of Cascade did not change the mobility of the DNA (Fig. 2nd). Different AcrIF9 homologues (Aa2, Aa3 and Vp) additionally confirmed analogous DNA binding patterns (Supplementary Fig. S4). Furthermore, such smeared DNA bands have been additionally noticed utilizing DNA that was non-specific for the Cascade, i.e., the Cascade-matching protospacer was absent within the DNA (Supplementary Fig. S3). The non-specific DNA might additionally displace the AcrIF9-Cascade complicated certain to the goal DNA (Supplementary Fig. S5). These outcomes point out that the AcrIF9-Cascade complicated can kind non-specific interactions with DNA.

Final, to check a potential interplay between Cascade and AcrIF6 or AcrIF9 we investigated protein mixes by the size-exclusion chromatography. Each AcrIF6 and AcrIF9 proteins eluted along with Cascade exhibiting their direct interplay with the complicated (Supplementary Fig. S6).

Taken collectively, each AcrIF6 and AcrIF9 bind to the Cascade complicated inhibiting its potential to acknowledge DNA targets. Moreover, AcrIF9 drives Cascade binding to DNA in a sequence non-specific method, which we aimed to investigate in additional element.

Monitoring AcrIF9-Cascade binding to DNA at a single-molecule degree

We employed atomic drive microscopy (AFM) and Tender DNA Curtains32,33 applied sciences to get mechanistic data on the AcrIF9-Cascade complicated binding to a DNA at a single-molecule degree.

First, we used AFM, a surface-sensitive method, which permits the detection of protein-DNA interactions at excessive decision. We used a DNA fragment of ~ 600 bp size containing the Cascade goal that was positioned ~ 200 and 400 bp from the DNA ends (~ 1/third of DNA size). We incubated the DNA with both Cascade or the AcrIF9-Cascade complicated and scanned the samples utilizing the AFM. Within the absence of AcrIF9, Cascade was localized on the anticipated 1/third of DNA size indicating the precise interplay with the goal sequence (Fig. 3a,e and Supplementary Figs. S7, S8). When the AcrIF9-bound Cascade was added, the unbound DNA and the separate protein complexes dominated on the floor (Fig. 3b; the unbound DNA on the floor comprise 63% (n = 227) in comparison with 3% (n = 210) within the presence and absence of AcrIF9, respectively), confirming that AcrIF9 inhibits the Cascade binding to the goal sequence. Nonetheless, we additionally noticed uncommon protein binding occasions positioned on the 1/third of DNA size, which probably represented the R-loop shaped by the AcrIF9-unhindered Cascade (Fig. 3f and Supplementary Figs. S7, S8). The intensive wash steps are carried out earlier than AFM imaging dissociating weakly certain biomolecules from the floor thus the much less steady interactions of the Cascade-AcrIF9 complexes are probably washed out from the non-specific DNA websites leaving the extra steady R-loops. We tried to repair weak protein-DNA interactions utilizing glutaraldehyde crosslinking. On this case, binding occasions for each Cascade (Fig. 3c and Supplementary Figs. S7, S8) and the AcrIF9-Cascade (Fig. 3d and Supplementary Figs. S7, S8) complexes have been detected which have been distributed extra evenly all through DNA size indicating the non-specific binding (Fig. 3g,h, and Supplementary Desk S3). Nonetheless, the addition of glutaraldehyde promotes aggregation (Supplementary Fig. S7) and will increase the volumes of the complexes by 2–3 instances in contrast with complexes untreated with the crosslinker (Fig. 3a–d, and Supplementary Desk S4). Within the management experiment, the AcrIF9 protein within the absence of Cascade didn’t crosslink with the DNA (Supplementary Fig. S9), supporting the failure of AcrIF9 to change DNA migration within the EMSA experiment (Fig. 2c).

Determine 3
figure 3

Cascade and AcrIF9-Cascade binding distribution on DNA monitored by AFM. (ad) Consultant AFM pictures of the protein-DNA interplay complexes. Scan dimension 1 µm by 1 μm (further pictures and magnified views are offered in Supplementary Figs. S7 and S8, respectively). (eh) Protein binding distribution on the DNA. The proportion histogram signifies the frequency of the binding occasions in response to the binding websites, which have been obtained by measuring the space from the centre of a certain protein to the shorter DNA finish. (a,e) Cascade (variety of analyzed complexes—n = 66) and (b,f) AcrIF9-Cascade (n = 29) binding to DNA within the absence of the cross-linker. (c,g) Cascade (n = 51) and (d,h) AcrIF9-Cascade (n = 30) binding to DNA within the presence of the cross-linker (2% (v/v) of glutaraldehyde; indicated by asterisk). AcrIF9 and Cascade have been preincubated earlier than DNA addition in (b,d). The Cascade goal web site is indicated by a grey-coloured interval inside the dotted traces. The info are summarized in Supplementary Desk S3.

Subsequent, to guage the dynamics of Cascade and AcrIF9-Cascade binding to the DNA, we employed the Tender DNA Curtains platform32,33. On this stretch-flow assay, oriented bacteriophage lambda DNA molecules (48.5 kb) have been tethered at each ends (containing biotin and digoxigenin, respectively) to the flow-cell floor on the printed traptavidin (tAv) line-features (Fig. 4a). The fluorescently labelled Cascade complicated (focusing on sequence positioned ~ 31.1 kb from the biotinylated lambda DNA finish) was injected into the flow-cell and its binding on the stretched DNA substrate within the absence of the buffer circulation was monitored (Fig. 4a). We registered the Cascade binding occasions (Fig. 4b), which may very well be grouped into two populations: (i) short-lasting of < 20 s and (ii) long-lasting of > 20 s. The short-lasting occasions have been distributed all through the DNA size, whereas the long-lasting occasions have been grouped to the goal web site (Fig. 4c). Upon addition of AcrIF9, each brief and lengthy populations of the Cascade binding have been additionally detected. Nonetheless, the share of occasions for the lengthy binding inhabitants markedly elevated in comparison with the Cascade binding within the absence of AcrIF9 (from ~ 11 to ~ 30%). Moreover, the lengthy binding occasions have been distributed all through the DNA size exhibiting the non-specific binding (Fig. 4d). The proportion of the on-target occasions decreased in comparison with the Cascade binding within the absence of AcrIF9 (from ~ 18 to ~ 8%). The off-target binding frequency upon addition of AcrIF9 elevated from ~ 31 to 42% and the imply off-target dwell-time elevated from ~ 7.8 to 18.6 s. Thus, the probably issue driving the non-specific DNA binding is the elevated dwell-time quite than the elevated binding frequency of the AcrIF9-Cascade complicated at off-target websites. This will clarify the same binding distribution of each crosslinked Cascade and AcrIF9-Cascade complexes within the AFM experiment (Fig. 3g,h) monitoring solely mounted time level pictures.

Determine 4
figure 4

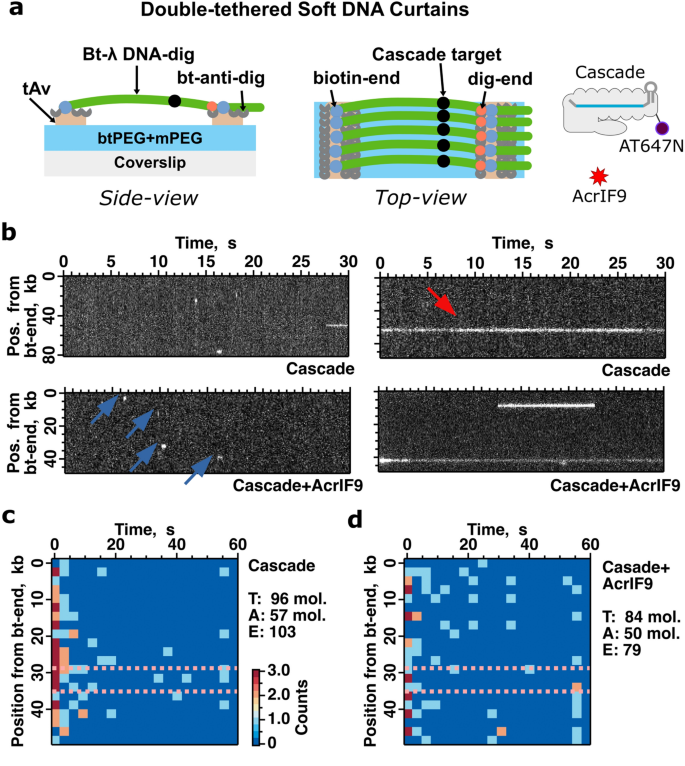

Binding location and length of Cascade on the DNA Curtains. (a) A schematic illustration of the assay depicts the double-tethered Tender DNA Curtains with the Cascade goal web site on λ DNA positioned at 31.1 kbp from the biotinylated DNA finish (bt-end). Biotinylated and digoxigenin labelled λ DNA (bt-λ DNA-dig) was immobilized on the floor printed traptavidin (tAv) line-features. The dig-end of λ DNA was post-tethered utilizing biotinylated anti-dig antibodies (bt-anti-dig). The binding of fluorescently labelled Cascade-mSav-AT647N to DNA was monitored within the presence or absence of AcrIF9. (b) Consultant kymographs comprised of particular person DNA molecules. These kymographs present short- (left; blue arrows) or longer-lasting (proper; red-arrow) binding occasions of Cascade to the DNA molecule within the absence (prime) or presence (backside) of AcrIF9. (c) Cascade binding place vs. dwell time 2D histogram plot. The whole variety of examined DNA molecules (T) was 96, and 57 DNA molecules confirmed at the least one Cascade binding occasion (A). The plot represents 103 particular person Cascade binding occasions (E). The color-code represents the binding counts. (d) Cascade pre-incubated with AcrIF9 binding place vs. dwell time 2D histogram plot. The whole variety of examined DNA molecules was 84, and 50 DNA molecules confirmed at the least one Cascade binding occasion. The plot represents 79 particular person Cascade binding occasions. The anticipated vary of Cascade focused binding is marked by the magenta dashed line.

Taken collectively the outcomes of the single-molecule research help earlier findings primarily based on the experimental observations in bulk answer: AcrIF9 inhibits the Cascade’s potential to particularly acknowledge the goal web site and promotes its non-specific interplay by prolonging the dwell-time of the complicated within the off-target DNA websites.

Construction of AcrIF9

We solved the crystal construction of Aa1-AcrIF9 protein at 2.3 Å decision (Desk 1). Aa1-AcrIF9 consists of a 5 stranded, antiparallel β sheet cradling an α helix (Fig. 5a). Construction of Aa1-AcrIF9 is much like three obtainable homologous constructions of AcrIF9 from Pseudomonas aeruginosa (Pa-AcrIF9, PDB ID 6VQV, Dali Z-score 12.2, 40% equivalent aa), Proteus penneri (Pp-AcrIF9, PDB ID 6W1X, Dali Z-score 10.9, 36% equivalent aa), and Photobacterium damselae (Pd-AcrIF9, PDB 7CHR, Dali Z-score 11.5, 40% equivalent aa (Pd-AcrIF9 is 100% equivalent with Pa-AcrIF9)) (Supplementary Fig. S10)21,34,35. The primary distinction of Aa1-AcrIF9 is an extended loop L3-4 (residues 54–62) between the strands S3 and S4, which comprises a further brief α helix H2 (Fig. 5a and Supplementary Fig. S10).

Desk 1 Knowledge assortment and refinement statistics.
Determine 5
figure 5

Crystal construction of AcrIF9. (a) The general construction of Aa1-AcrIF9. The secondary construction parts are labelled. (b) Cascade and DNA interplay surfaces. Residues of Aa1-AcrIF9 doubtlessly interacting with Cascade and DNA are proven in stick illustration and colored orange and purple, respectively. The loop L3-4 is colored magenta. Mutants of the corresponding residues are indicated. (c,d) Cascade binding to the DNA goal within the presence of the AcrIF9 mutants. The rising concentrations of the AcrIF9 mutant proteins (50, 500, 5000 nM) have been incubated with both 20 nM (c) or 100 nM (d) Cascade after which launched to the binding buffer containing 20 nM goal DNA. Protein interactions with the DNA have been assayed by EMSA in agarose gel. (e) In vivo inhibition of Aa-CRISPR-Cas by the AcrIF9 mutants. The respective AcrIF9 mutants have been co-expressed with the Aa-CRISPR-Cas system both focusing on or non-targeting the E. coli genome. Empty vector (–) was used as a management. The ratio of transformation efficiencies of non-targeting and focusing on guides was expressed as cell demise efficiencies. Error bars symbolize customary deviations of common in at the least three separate experiments.

The cryo-EM constructions of Pa- and Pp-AcrIF9 certain to the Pa-Cascade complicated point out that two AcrIF9 molecules bind to the thumbs of Cas7f.4 and Cas7f.6 subunits and the 2 AcrIF9 binding websites are comparable21,34. The Pp-AcrIF9 additionally interacts with further DNA molecules34. We superimposed the constructions and recognized the Aa1-AcrIF9 surfaces doubtlessly concerned within the interactions with Cas7f subunits and DNA (Supplementary Fig. S10). We changed the residues K24A/R37A/K72A (mutant termed M1), K24E (M2), and R37E (M3) that could be answerable for interplay with the DNA. Moreover, we launched mutations N12A/N13A/N15A/Y17A (M4) and F41A (M5) and deleted ΔL54-V60 (M6) or changed I51-D61 → VNGL (M7; the loop within the Pa-AcrIF9) residues of the L3-4 loop that could be concerned within the interactions with the Cas7f subunits (Fig. 5b and Supplementary Fig. S10). We purified the mutant proteins (Supplementary Fig. S11) and assayed their exercise in vitro (Fig. 5c,d, and Supplementary Figs. S12, S13) and in vivo (Fig. 5e).

The M1, M2, and M3 mutations disrupted the AcrIF9-mediated binding to non-specific DNA because the smeared DNA bands disappeared in EMSAs with goal and non-target DNA (Fig. 5c,d, and Supplementary Fig. S12). Nonetheless, these mutants retained the power to dam the Cascade binding to the DNA goal leading to inhibition of the DNA degradation by Cas2/3 (Fig. 5c,d, and Supplementary Fig. S13). The M4 and M5 mutations of Aa1-AcrIF9 permitted the Cascade binding to the goal sequence resulting in unhindered R-loop formation (Fig. 5c) and the Cas2/3-mediated cleavage (Supplementary Fig. S13). Curiously, these Aa1-AcrIF9 mutants retained the power to mediate non-specific DNA binding each in goal and non-target DNA substrates though with diminished effectivity in comparison with WT protein (Fig. 5d and Supplementary Fig. S12). This reveals that M4 and M5 mutations disturbed the AcrIF9 binding to Cascade; nevertheless, the interplay was not diminished. This phenotype could also be as a result of longer loop L3-4 of Aa1-AcrIF9, which might make further contacts with the neighbouring Cas7f subunit and stabilize the Cascade-AcrIF9 complicated (Supplementary Fig. S10). The deletion of the L3-4 loop (M6) or its alternative with the Pa-AcrIF9 loop (M7) fully blocked the Aa1-AcrIF9 interplay with the Cascade (Fig. 5c,d). Nonetheless, the steadiness of those mutants was considerably decrease than WT or different Aa1-AcrIF9 mutants (Supplementary Fig. S14). This means that the L3-4 loop performs an vital structural function inside Aa1-AcrIF9 and probably participates in interplay with the Cascade complicated.

Lastly, we assayed the potential of those mutant proteins to inhibit the CRISPR-Cas system focusing on the E. coli genome (Fig. 5e and Supplementary Fig. S15). Alterations inside Cascade interplay floor (M4 and M5) and the loop deletions (M6 and M7) fully disrupted the inhibitory potential of AcrIF9 thus enabling the system to kill E. coli cells. Mutations of the DNA interplay floor (M1-M3) resulted in several in vivo inhibitory outcomes: M2 had no impact, M1 barely diminished, and M3 fully abolished the inhibition of the CRISPR-Cas system inside the cells. Thus, each Cascade and DNA interplay surfaces play an vital function within the AcrIF9 exercise in vivo.
